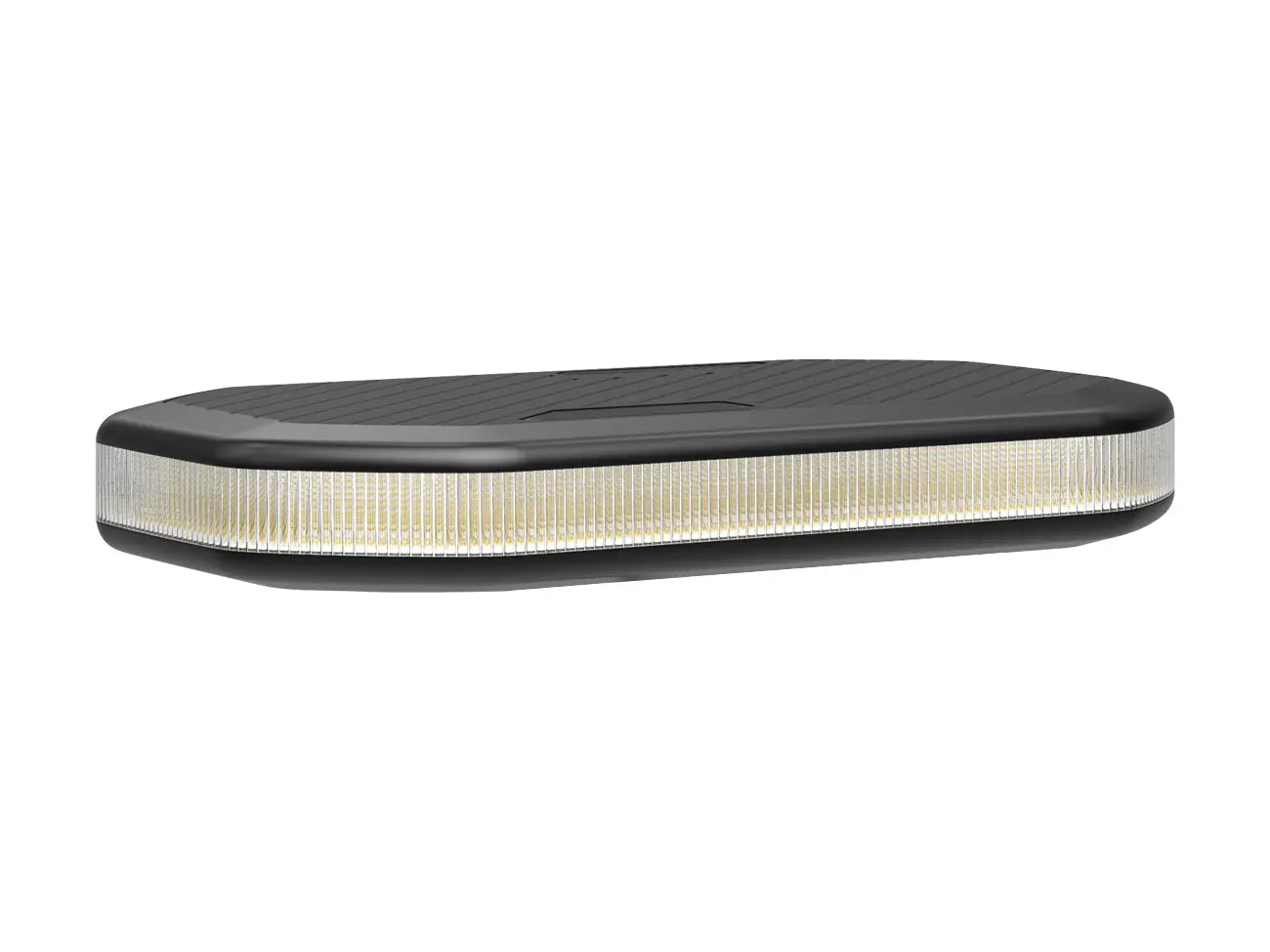

XC10 LED Minibar
- • Effective Thermal Design to Maximise LED Life
- • High Quality LED Modules Provide Consistent Warning Performance
- • IP67 - Fully Encapsulated for Moisture, Vibration and Corrosion Resistance

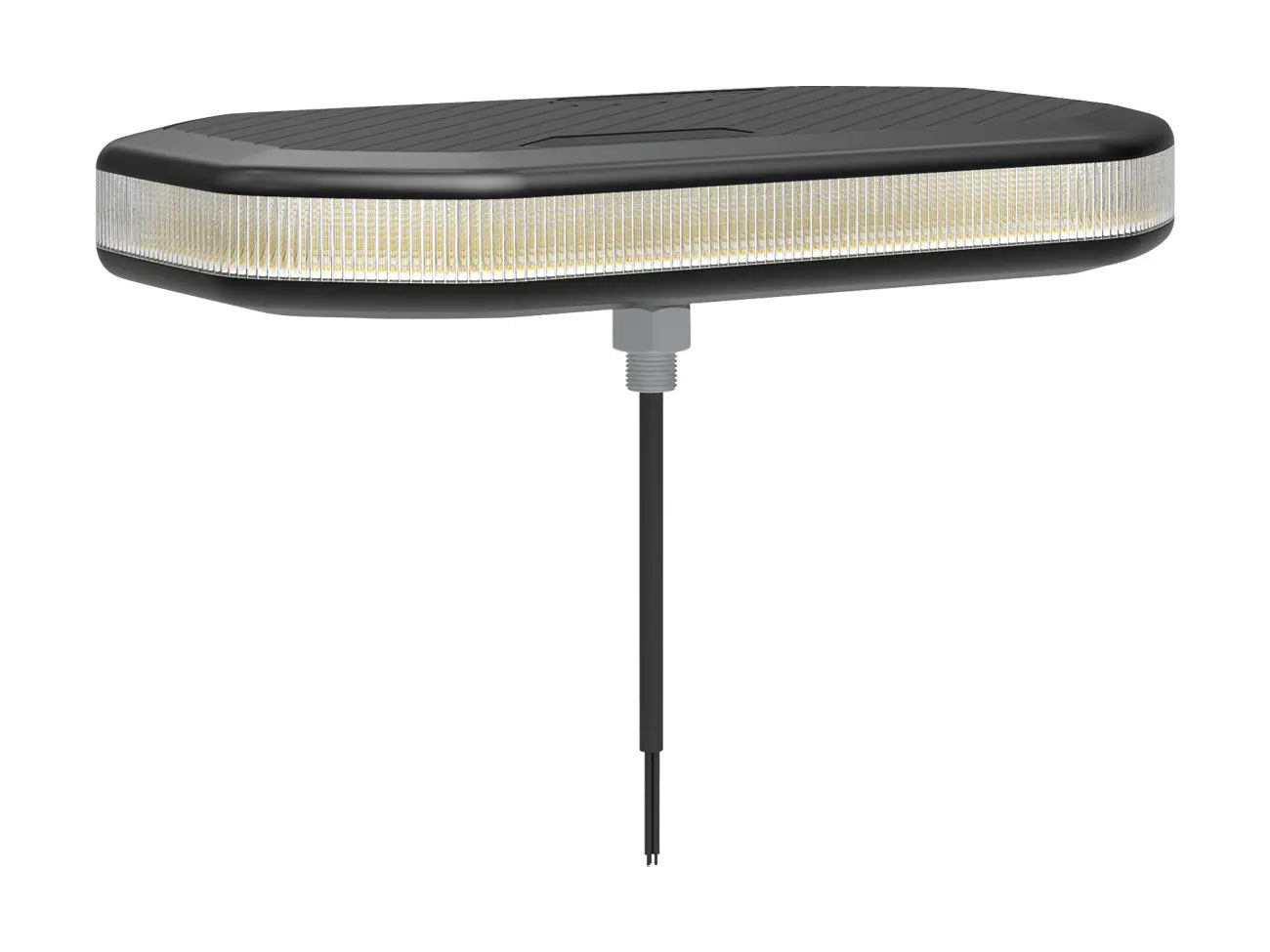

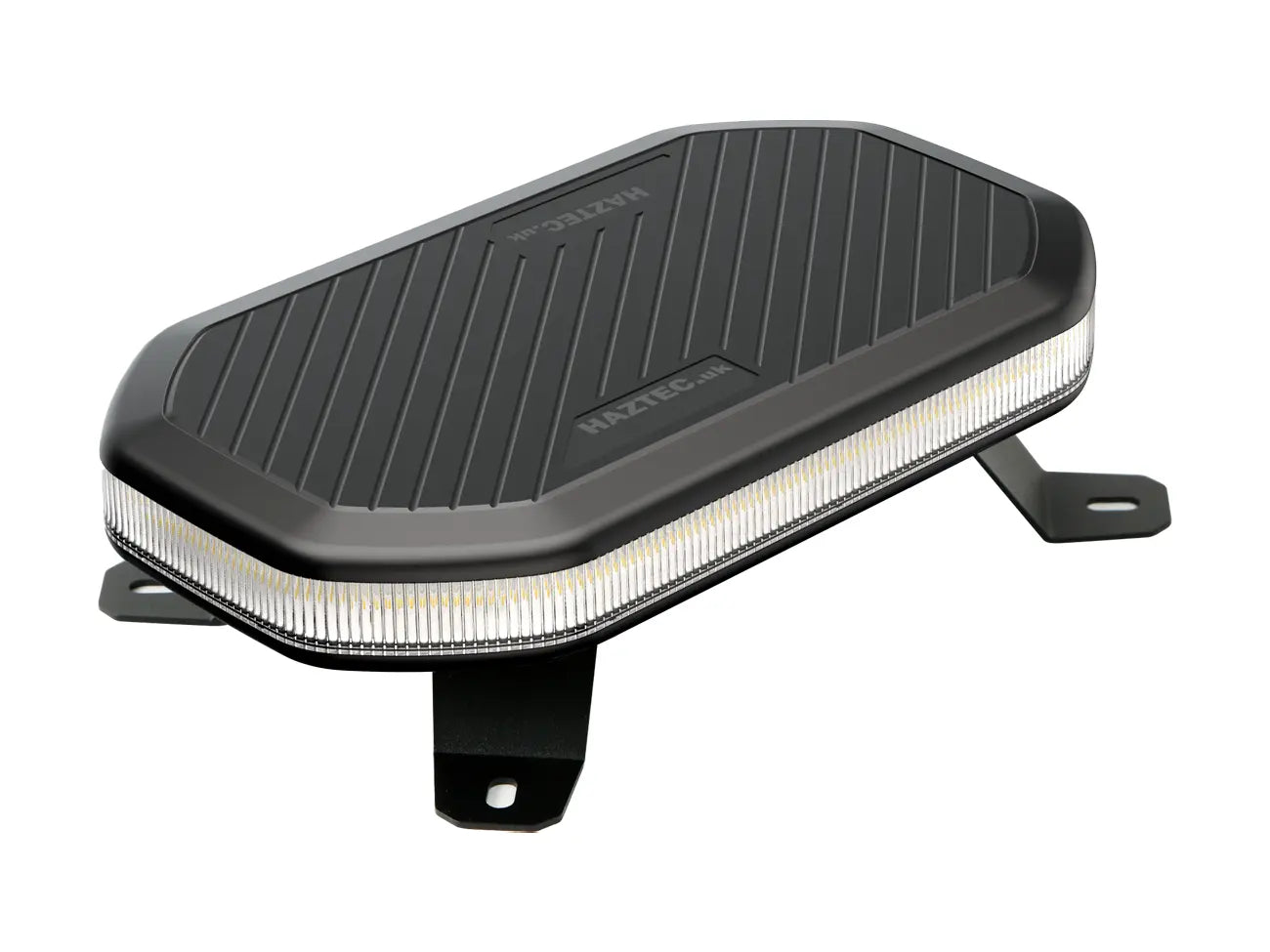

Mount Type:
Mount Type
Quantity:
Choose options
- • Effective Thermal Design to Maximise LED Life
- • High Quality LED Modules Provide Consistent Warning Performance
- • IP67 - Fully Encapsulated for Moisture, Vibration and Corrosion Resistance
Mount Type:
Mount Type
Quantity:
- • Effective Thermal Design to Maximise LED Life
- • High Quality LED Modules Provide Consistent Warning Performance
- • IP67 - Fully Encapsulated for Moisture, Vibration and Corrosion Resistance
Mount Type:
Mount Type
Quantity:
PRODUCT DESCRIPTION

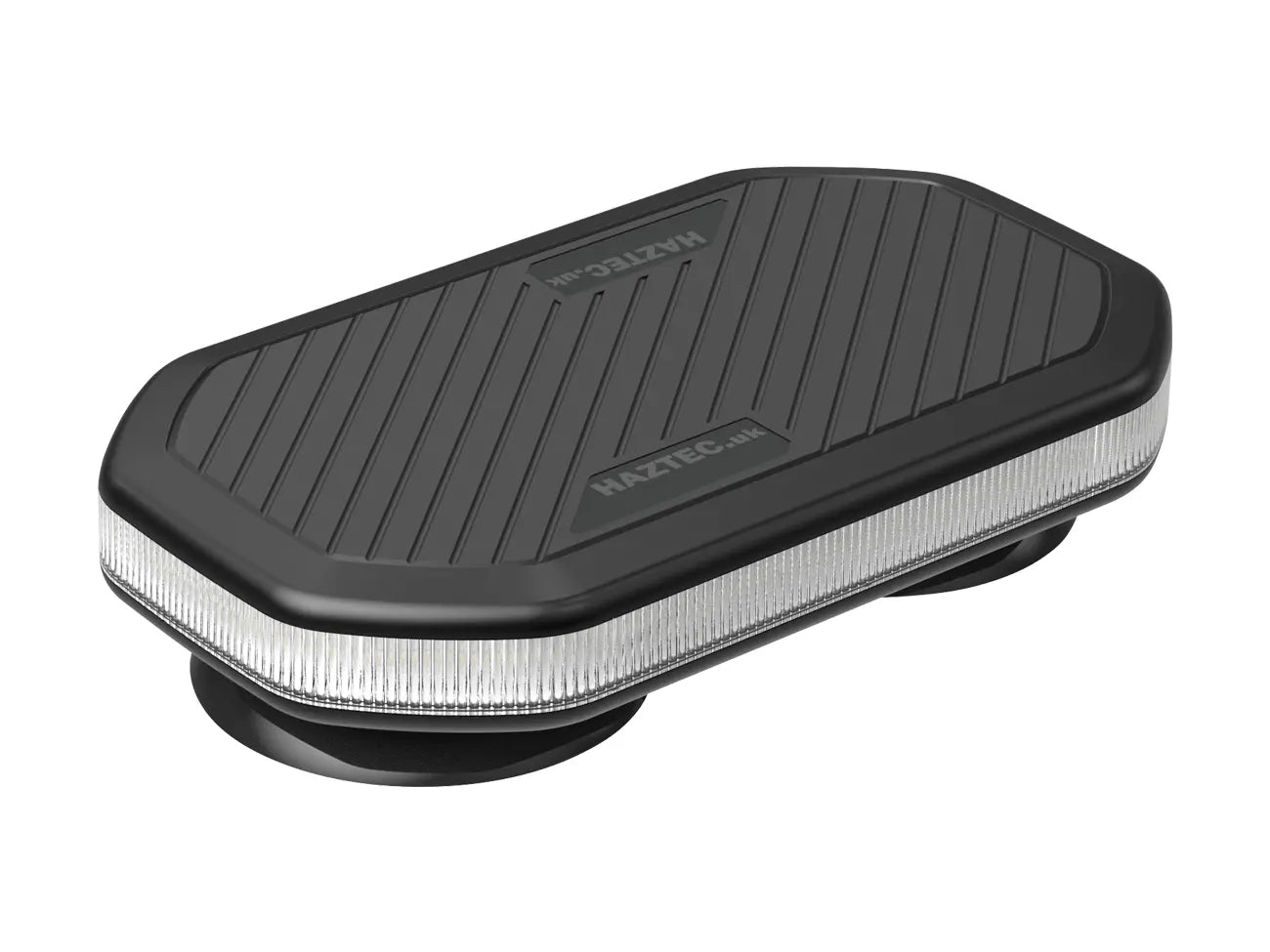

Compact LED minibar with 92 x 1 Watt LEDs providing 360° uniform light coverage and 21 flash patterns - magnetic mount with 2.5m long cable with switched cigar plug. 10-30VDC for 12 or 24V use. R65 Class 1 amber, or blue, red or white LEDs
Datasheets - Haztec XC10 Minibars
SPECIFICATIONS
- Profile: Low Profile
- No of LEDs: 92x 1W
- Flash Patterns: 21 Flash Patterns
- R65: R65 Class 1 Amber
- IP Rating: IP67
- Dimensions: 254W x 146D x 36H / 56H incl. Magnetic Mount (mm)
- Voltage: 10-30V
- Operating Temperature: -40°C to +65°C
- Material: Strong Polycarbonate Housing and Lens
- Warranty: 3 Years
TESTED & CERTIFIED
For your peace of mind, we submit our products to rigorous testing and independent certification to all
relevant international standards.
