Impact ELP 8 LED Beacon - Magnetic Mount
- • Extra Low Profile - Only 58mm High
- • R65 Certified in Amber, Blue & Red
- • 34kg Magnets with Moulded Rubber Base Covers
- • Wind Speed Certified to 250km/h (155 mph)
LED Colour:Amber
Lens Colour:
Lens Colour
Patterns:
Patterns
Quantity:
Choose options
- • Extra Low Profile - Only 58mm High
- • R65 Certified in Amber, Blue & Red
- • 34kg Magnets with Moulded Rubber Base Covers
- • Wind Speed Certified to 250km/h (155 mph)
LED Colour:Amber
Lens Colour:
Lens Colour
Patterns:
Patterns
Quantity:
- • Extra Low Profile - Only 58mm High
- • R65 Certified in Amber, Blue & Red
- • 34kg Magnets with Moulded Rubber Base Covers
- • Wind Speed Certified to 250km/h (155 mph)
LED Colour:Amber
Lens Colour:
Lens Colour
Patterns:
Patterns
Quantity:
PRODUCT DESCRIPTION

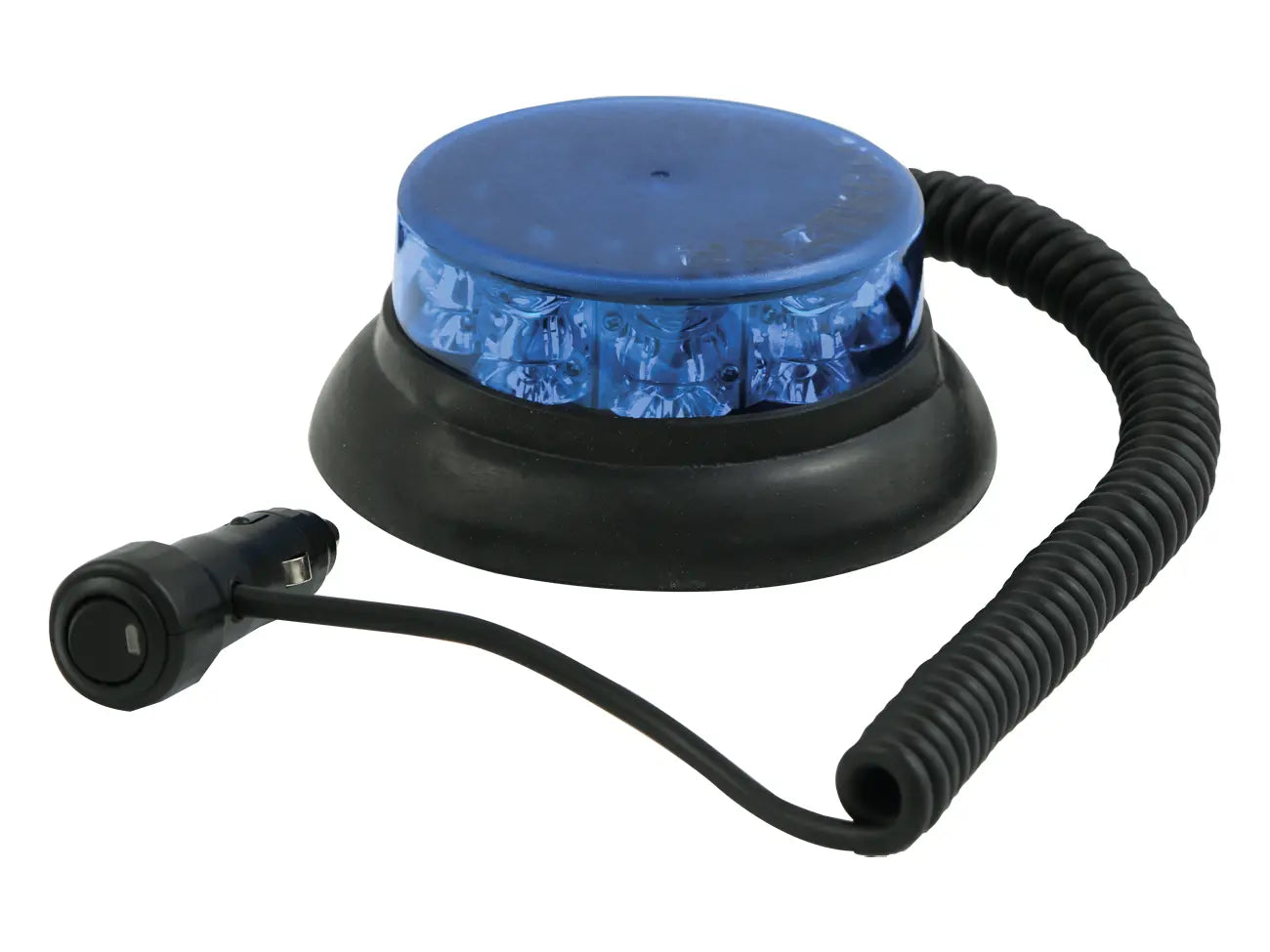

- Impact ELP extra low profile R65 8 LED beacon with built-in flasher with selectable patterns, night dim and cruise modes (switch dependent) and synchronisation capability for multiple units
- Magnetic mount with lead and fused plug - various lead/plug options available - contact sales to discuss requirements. Please note: -EU1 plug is not R65 compatible
- 10-40VDC for 12 or 24V use
- Single colours - R65 Class 1 amber, Class 2 blue, Class 2 red - Class 1 blue additional rotating flash patterns
- Clear or coloured lens
- Manufactured in the UK by Haztec
Datasheets - Haztec 3-3751 Impact ELP 8 LED Beacon
Datasheets - Haztec Cigar Plug Leads - Magnetic / Suction Mount Beacons
Instructions - 3-3751-M2 Extra Low Profile Magnetic Mount 8 LED Beacon (M275.1.1)
Instructions - 3-3751-M Extra Low Profile Magnetic Mount 8 LED Beacon (M117.1.0)
Instructions - 3-3751-M4 Extra Low Profile Magnetic Mount 8 LED Beacon (M308.1.0)
Instructions - 3-3751-M-EU1 Extra Low Profile Magnetic Mount 8 LED Beacon (M310.1.0)
SPECIFICATIONS
- Profile: Extra Low Profile
- No of LEDs: 8
- Flash Patterns: Up to 24 Flash Patterns
- Dimensions: 58mm High x Diameter 106mm (Lens) / 134mm (Base)
- R65 Certifications: R65 Class 1 Amber, Class 2 Blue, Class 2 Red (Class 1 Blue Additional Rotating Flash Patterns)
- Supply Voltage: 10-40V
- Material: Strong UV Stabilised Polycarbonate Lens, with a Rugged Powder Coated Cast Metal Base
- Type of Mount: Magnetic
- Warranty: 5 Years
TESTED & CERTIFIED
For your peace of mind, we submit our products to rigorous testing and independent certification to all
relevant international standards.
