Xpert Lightbar
- • Streamlined profile (79mm high)
- • R65 approved in single and dual colours
- • Custom lengths also available
- • Many configuration possibilities
Choose options
- • Streamlined profile (79mm high)
- • R65 approved in single and dual colours
- • Custom lengths also available
- • Many configuration possibilities
- • Streamlined profile (79mm high)
- • R65 approved in single and dual colours
- • Custom lengths also available
- • Many configuration possibilities
Fitted Options
Message Signs
Speakers
Centre Signs
Search Light
Headlights
Alley Lights
Spot/Takedown Lights
Stop/Tail/Turn & Reverse Lights
PRODUCT DESCRIPTION

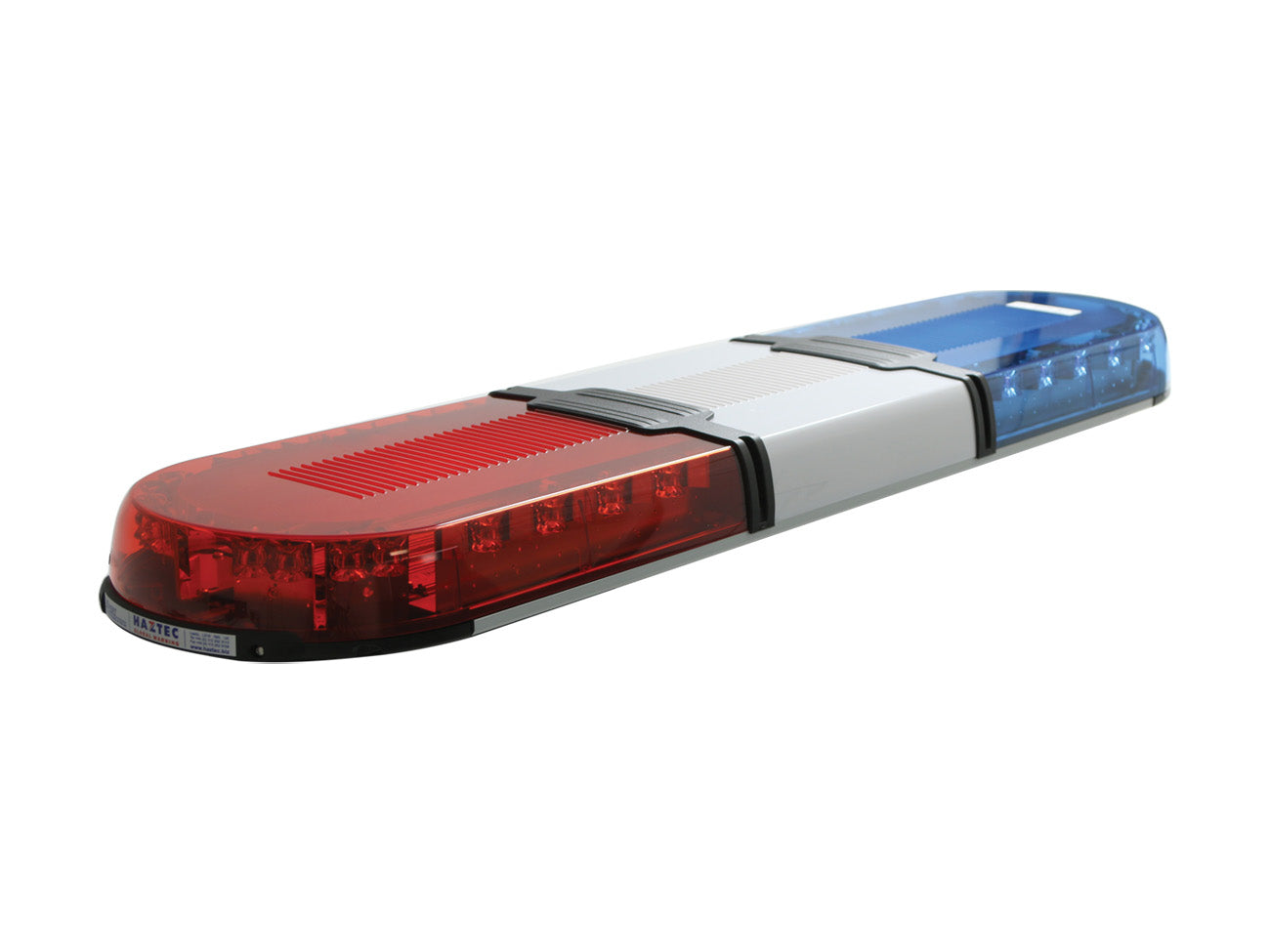

The Xpert lightbar delivers excellent quality and versatility at a highly competitive price. With an overall height of just 79mm, the Xpert combines a slim aerodynamic design with a large light-emitting area to maximise safety.
LED Modules
The Xpert has been designed to accommodate either single or dual row corner and inner LED modules and 9-3541, 9-3552 or 9-3751 360 degree LED modules.
As well as the LED modules, the Xpert can be fitted with ancillary lighting, such as alley, takedown, Gatso and stop / tail / turn lights.

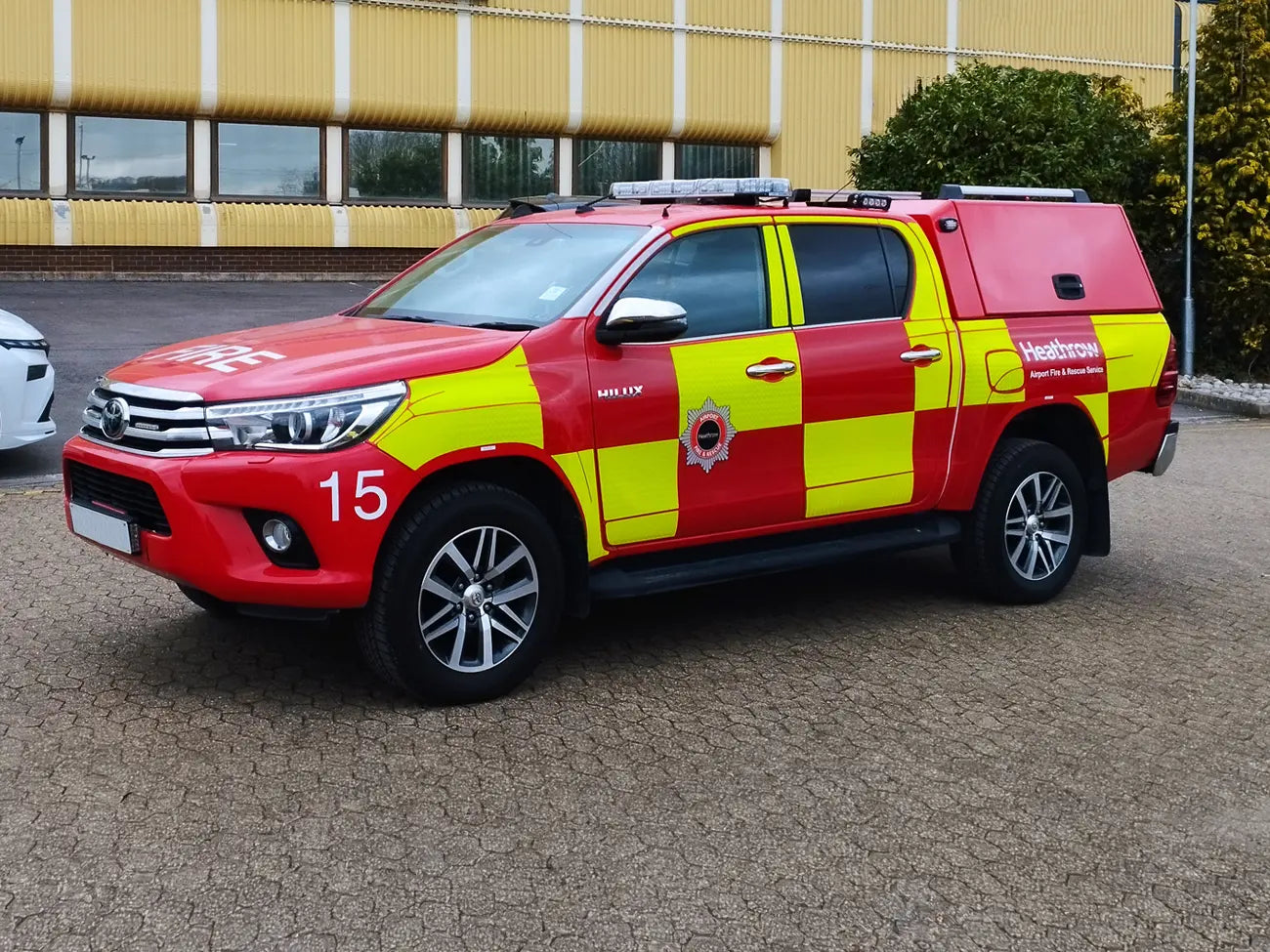

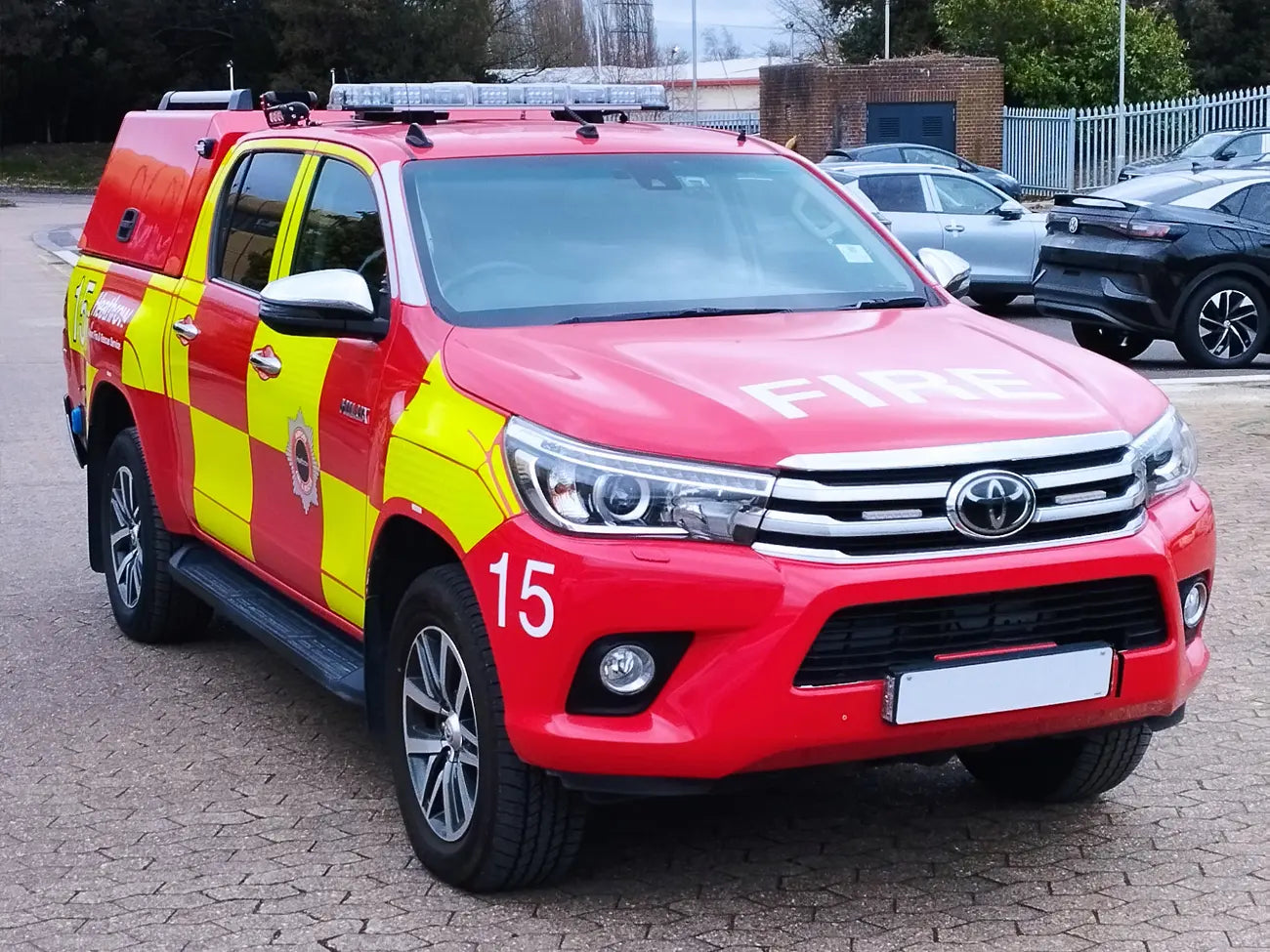

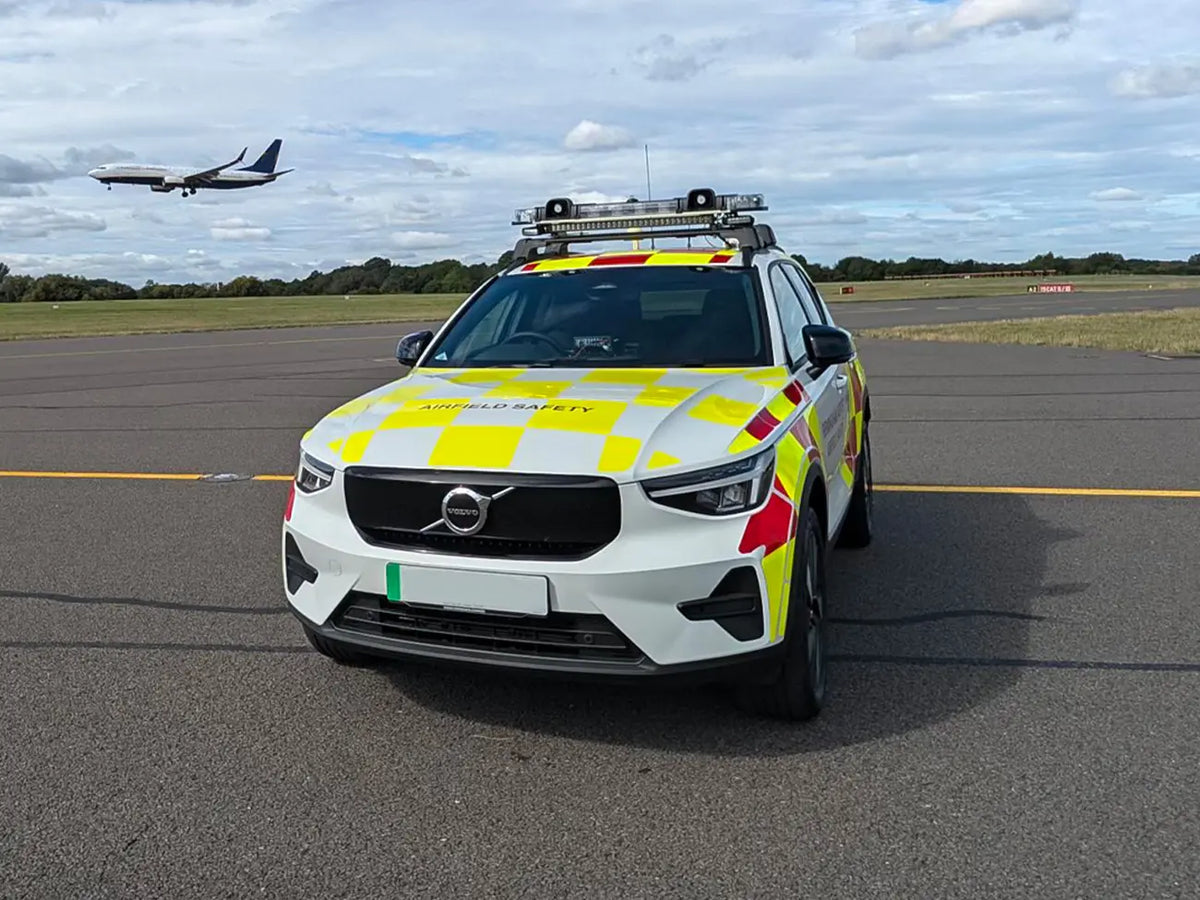

Various functions can be fitted, including Cap168 Type C (ICAO Annex 14) flash patterns for airside use and cruise, high/low power and front/rear operation.
Fitted Options

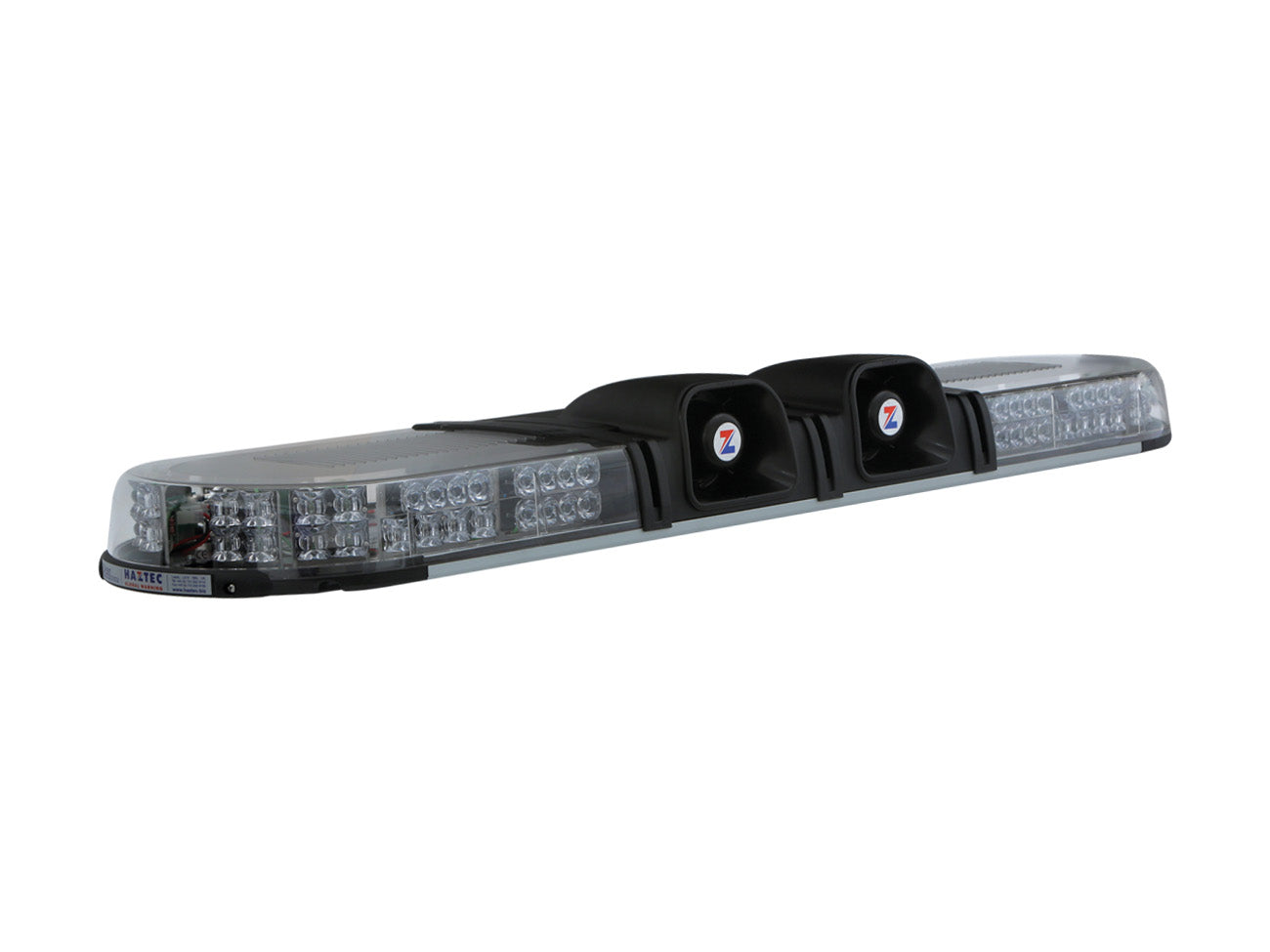

Speakers can also be incorporated for siren/PA functions. Other options include programmable LED message signs, illuminated signs, LED or halogen alley or scene lights, as well as clear or coloured lens inserts - contact sales for the many different options.

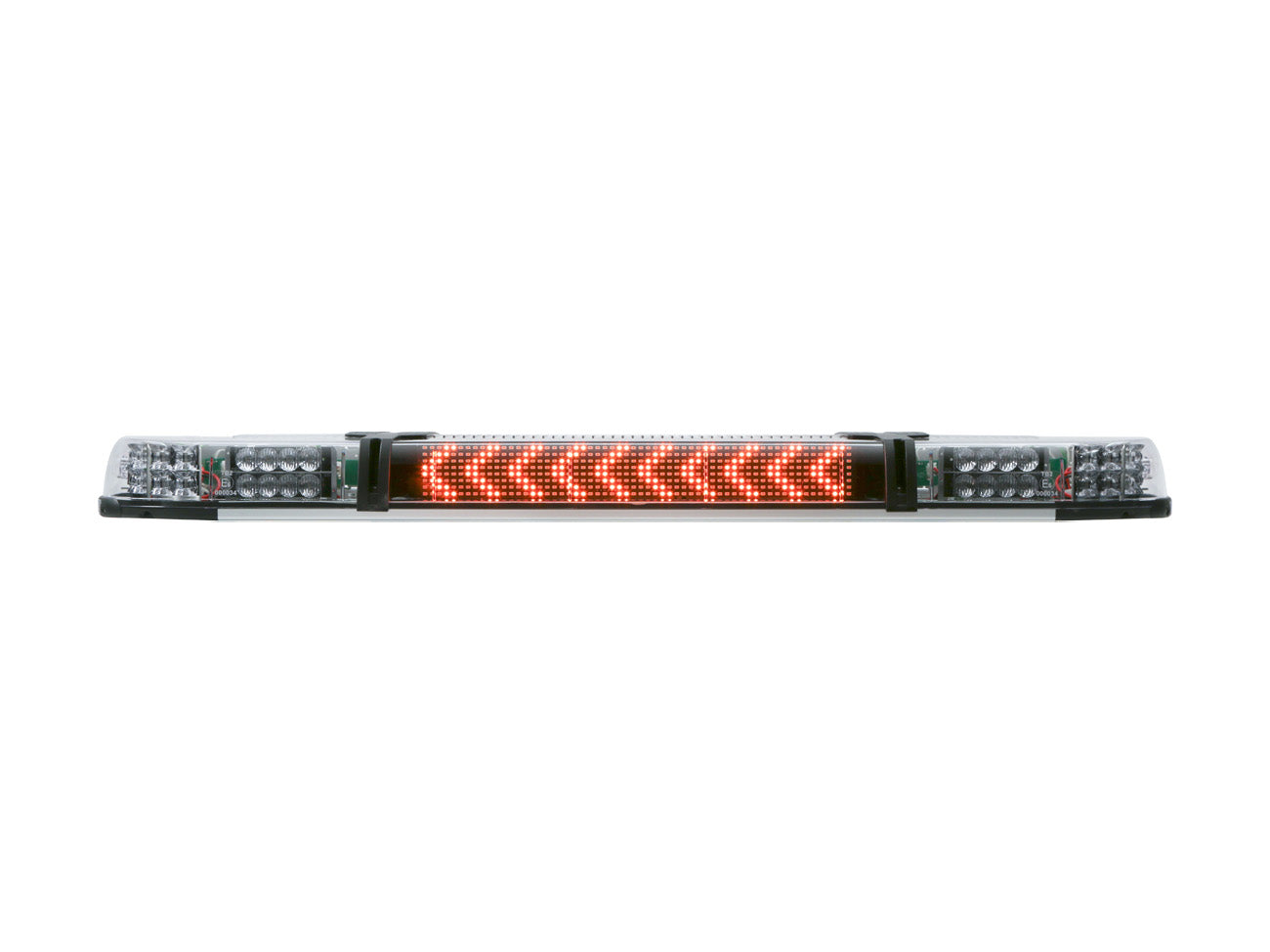

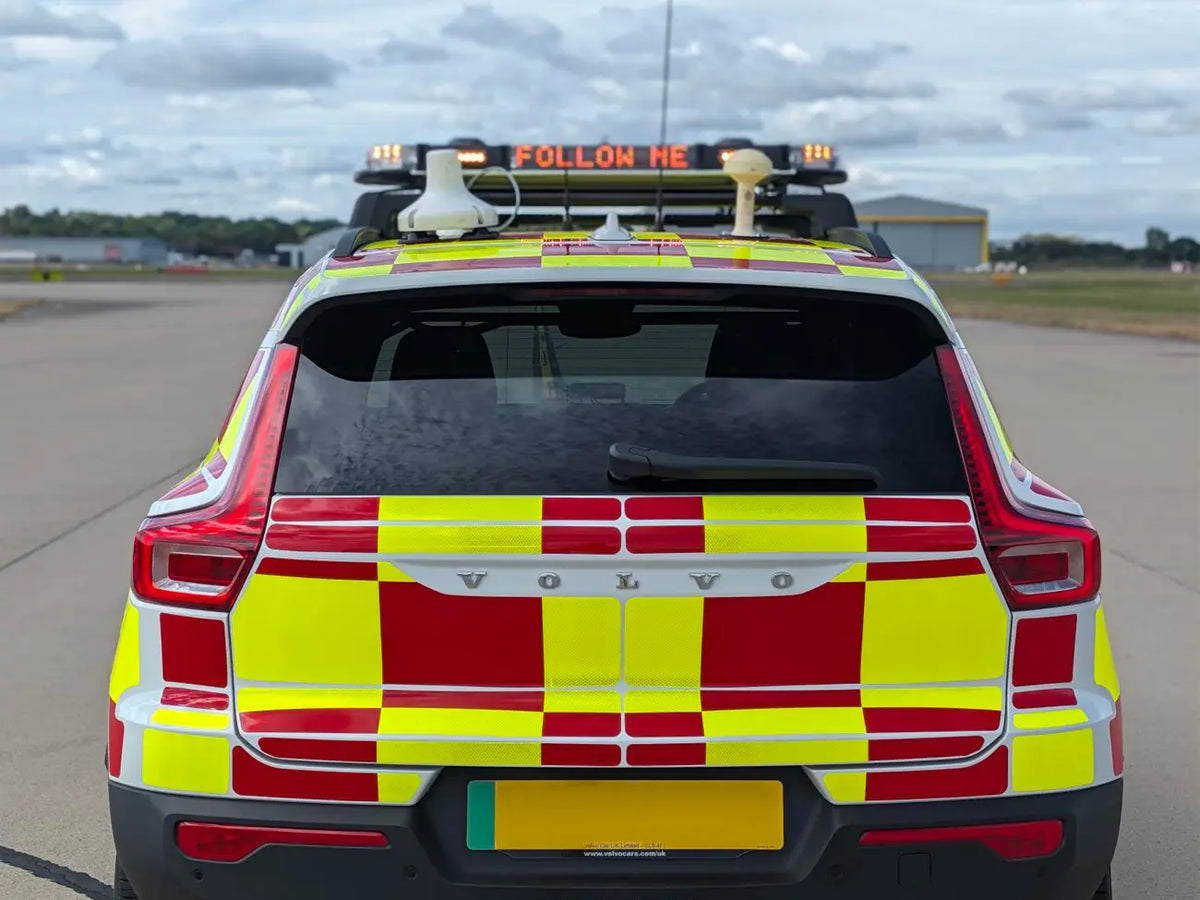

InfoSign Message Sign - capable of being controlled from a single EuroSmart CANbus handset along with the vehicle warning equipment - no need for separate controllers.
The Xpert Lightbar is manufactured in the UK by Haztec.
Datasheets - Haztec Xpert & Xpert DX Lightbars
SPECIFICATIONS
- Colour Options: Single, Dual-Colour
- LED Colours: Amber, Blue, Red, Green, White
- Lens Colours: Amber, Blue, Clear, Red
- R65 Certifications: R65 Class 1/2 Amber, R65 Class 2 Blue, R65 Class 2 Red
- Lengths: 429-1908mm
- Height: 79mm
- Depth: 292mm
- Supply Voltage: 10-30V
- Configurations: Message Signs, Sirens & Speakers, Search Light, Centre Signs & Headlight Units
- Ancillary Lights: Alley, Spot/Takedown, Stop/Tail/Turn & Reverse Lights
- Material: Strong UV stabilised polycarbonate lenses; rigid anodised extruded aluminium mounting rails
- Warranty: 5 years for LEDs
Have a Detailed Specification?
Haztec lightbars are built to your exact specifications, making them some of the most customisable available. Whether it's ancillary modules like alley lights, stop/tail/turn & reversing lights or options like an illuminated centre signs, there’s a solution for every requirement.
