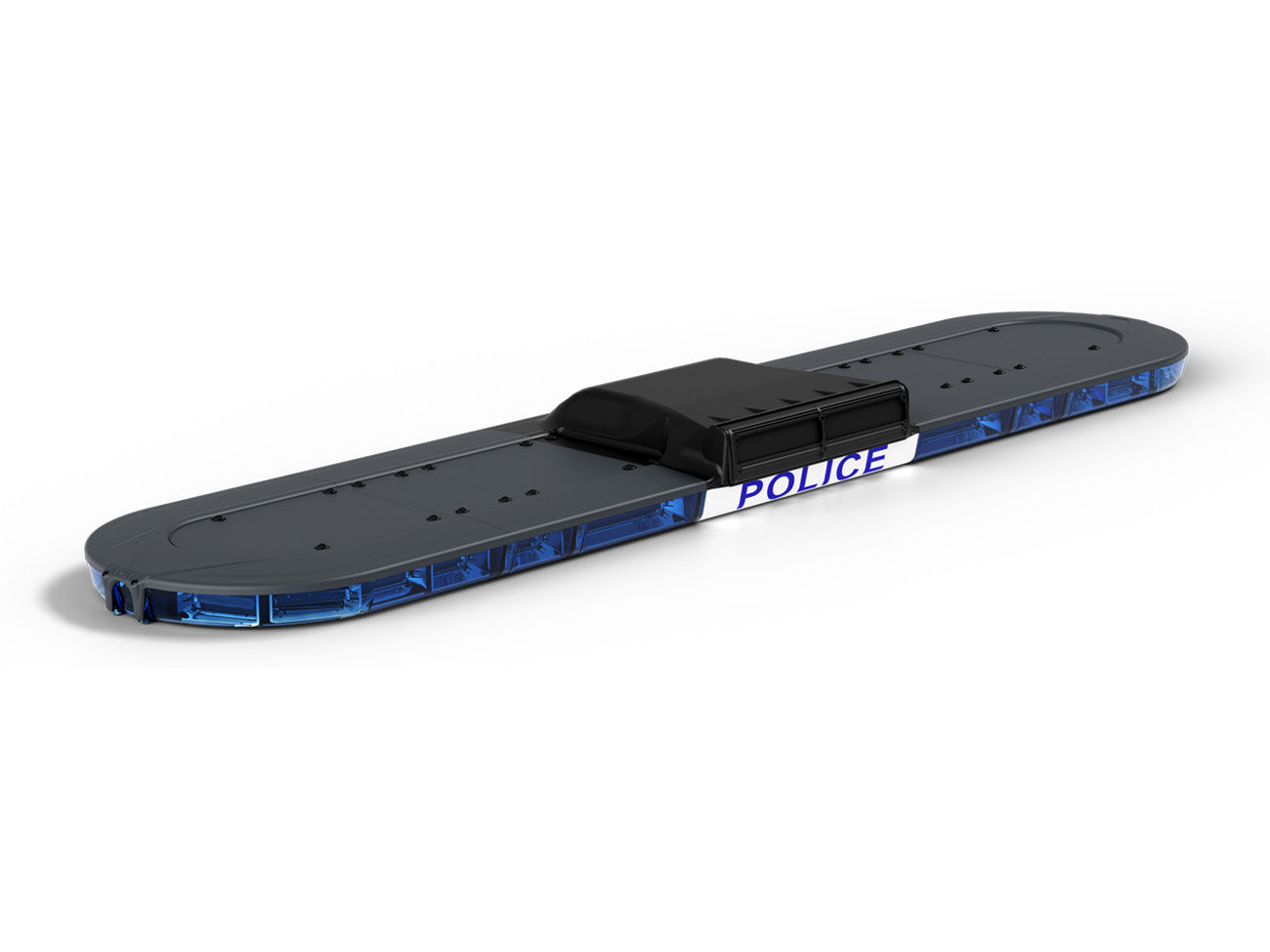

XL75 Lightbar

PRODUCT DESCRIPTION

At just 46mm high, the XL75 delivers a sleek, modular design, which can be specified in many different lengths and with all the essentials and options an emergency service or utility vehicle warning system might require.

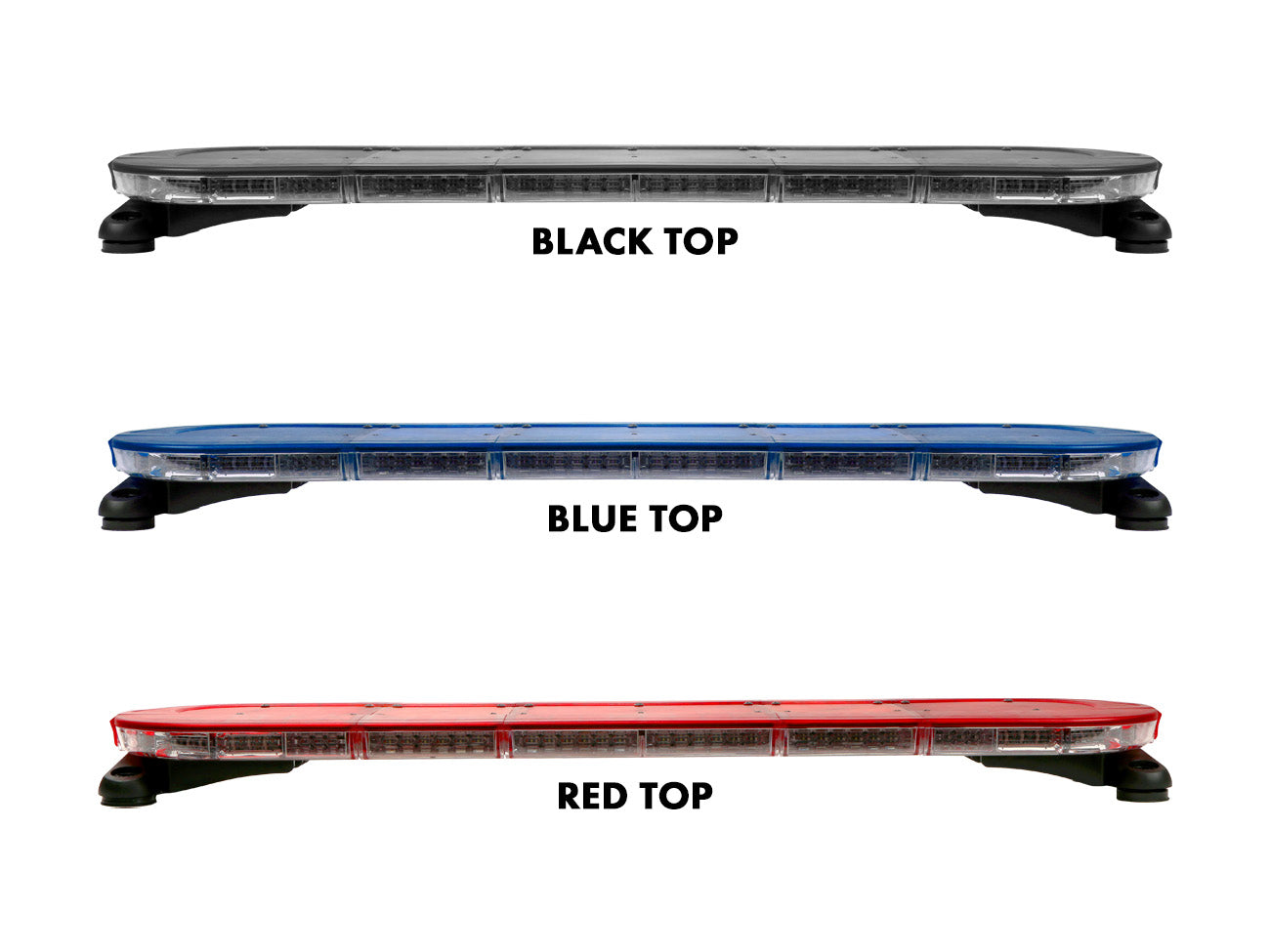

The XL75's top covers can be specified in black (standard), blue or red.

LED Modules

Supplied with high ouput, long-life LEDs with purpose designed high reflectivity linear optics and collimators, the XL75's LED modules can be placed in various positions within the lightbar to match your required specification.

These powerful modules are available in ECE R65 Class 2 certified amber, blue or red single, dual or tri-colour combinations; green or white LEDs are also available.

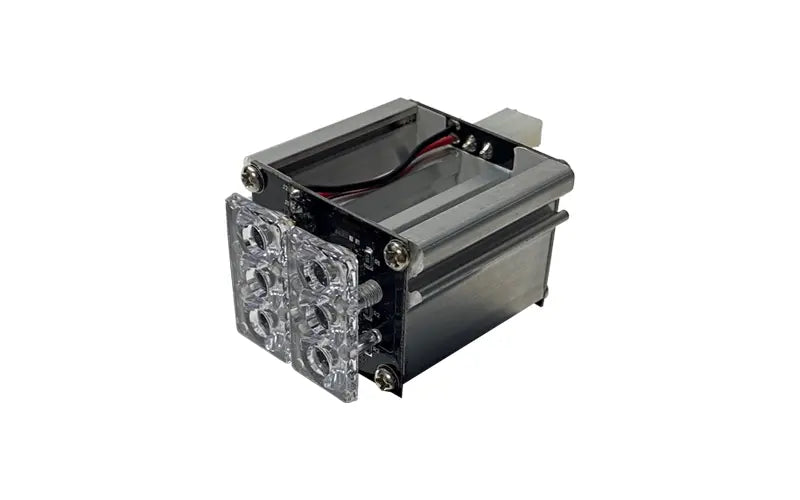

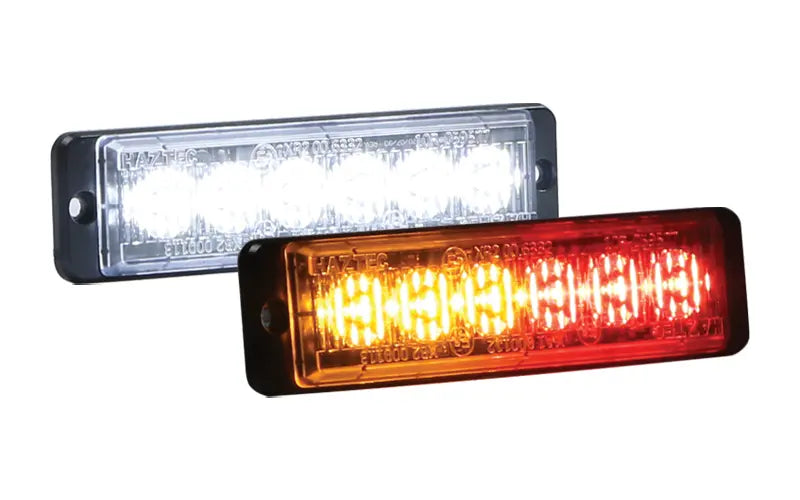

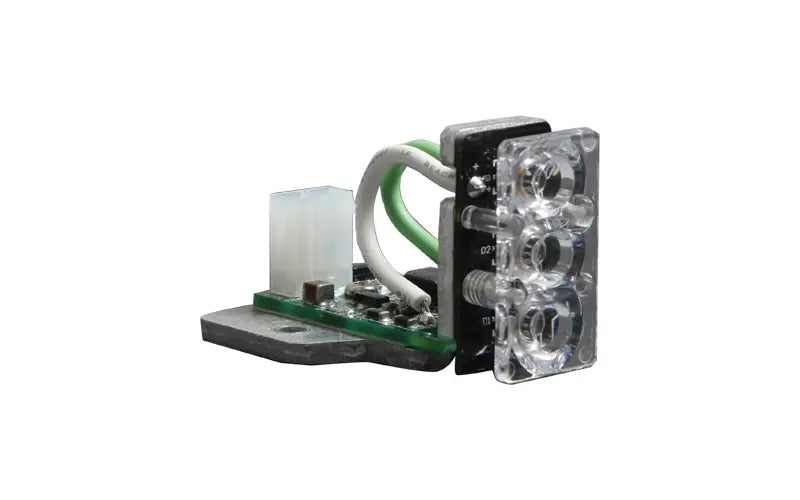

As well as the LED modules, the XL75 can be fitted with ancillary lighting, such as alley, takedown and stop / tail / turn lights.

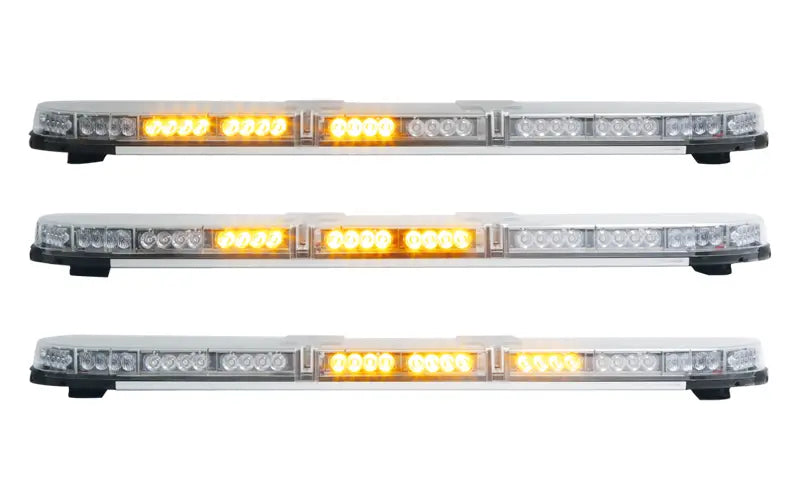

Various functions can be fitted, including Cap168 Type C (ICAO Annex 14) flash patterns for airside use and cruise, high/low power, directional arrow patterns, and front/rear operation.

Fitted Options

The XL75 is one of our most versatile lightbars with a wide range of configurations, that includes:

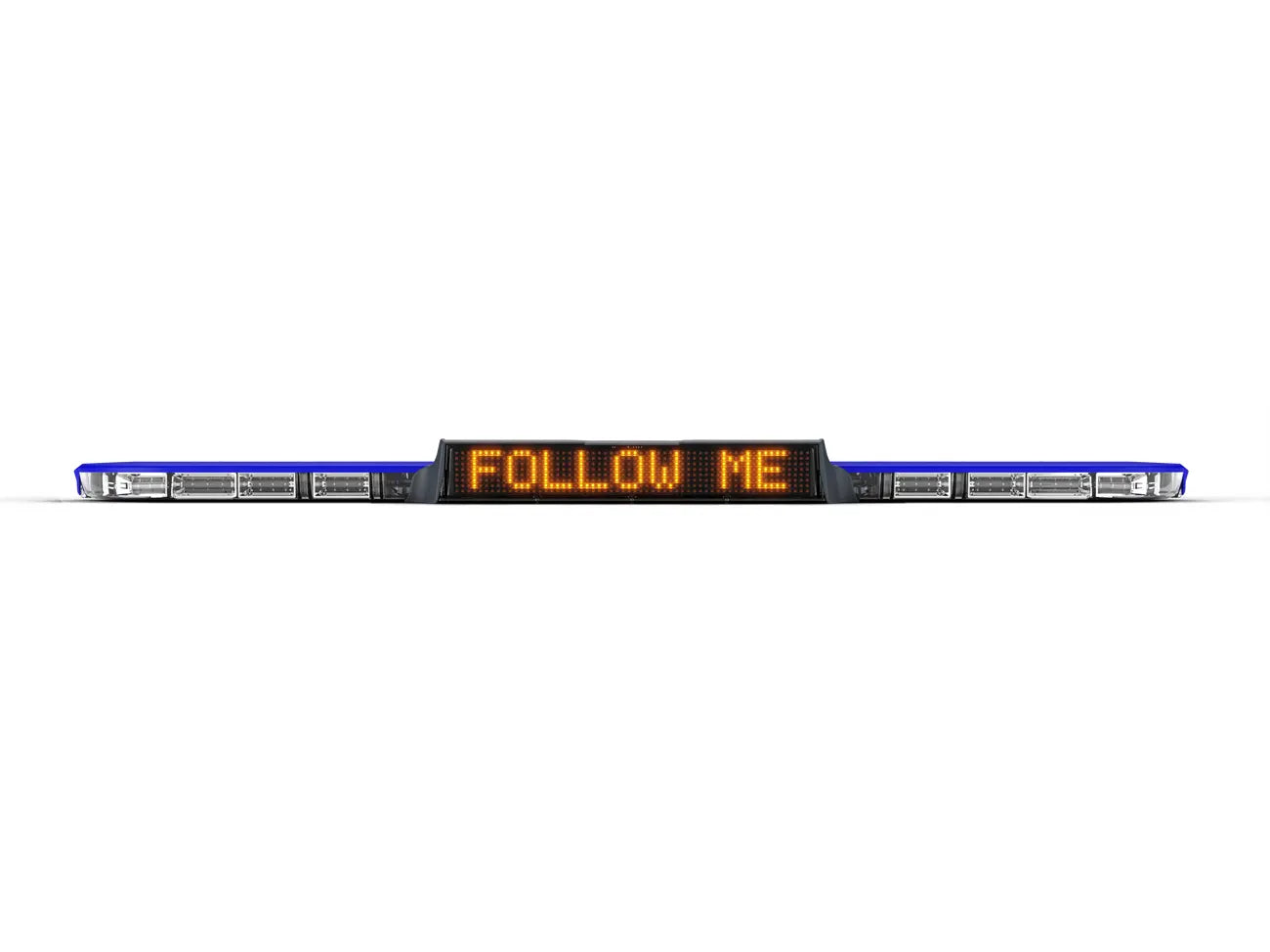

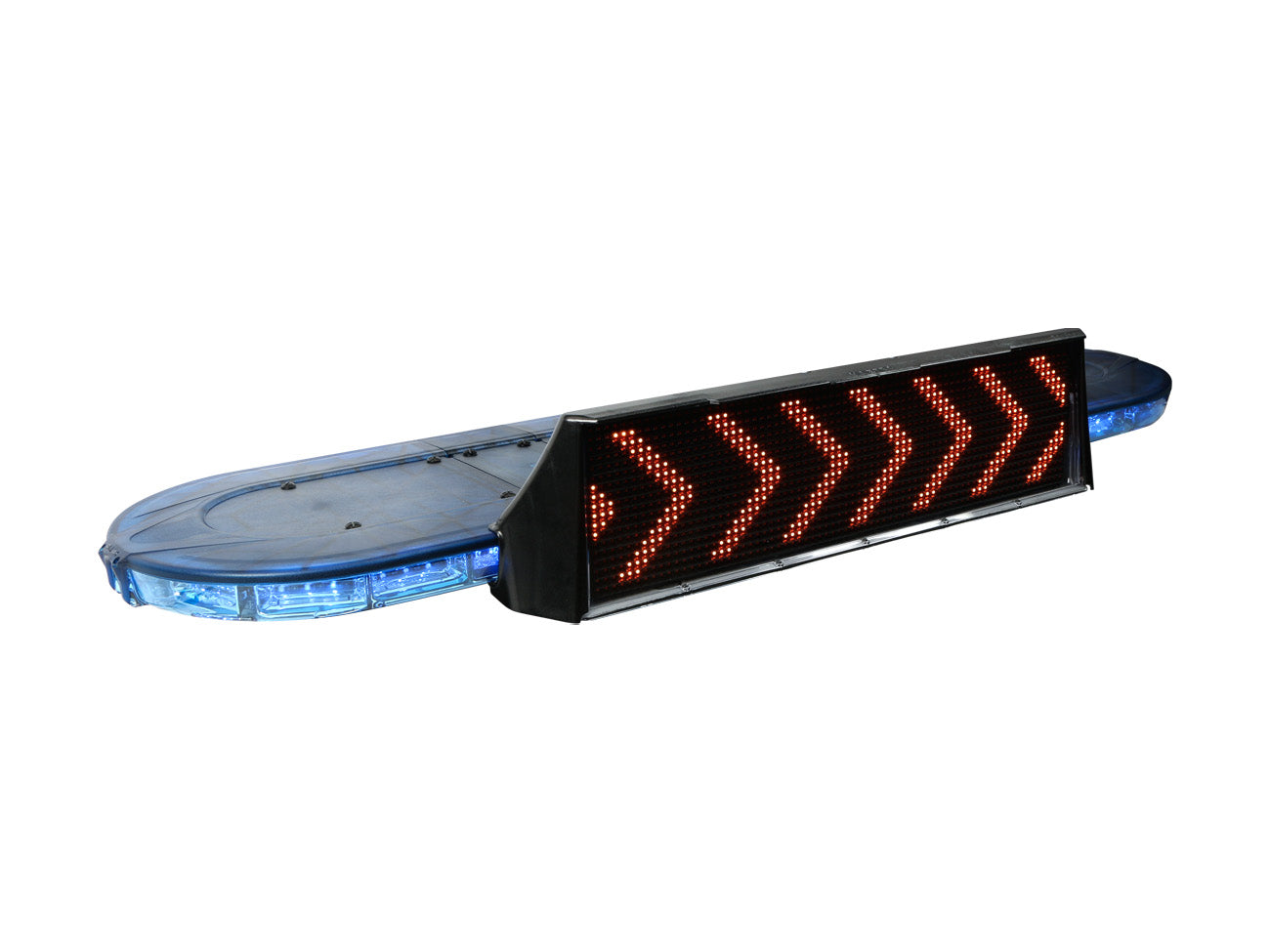

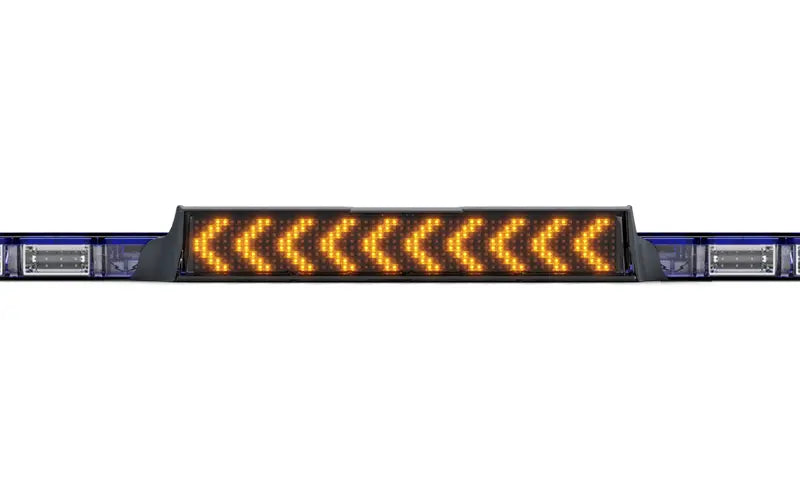

• InfoSign Message Sign - mounted to the front and/or rear of the lightbar. Capable to be controlled from a single EuroSmart CANbus handset along with the vehicle warning equipment - no need for separate controllers.

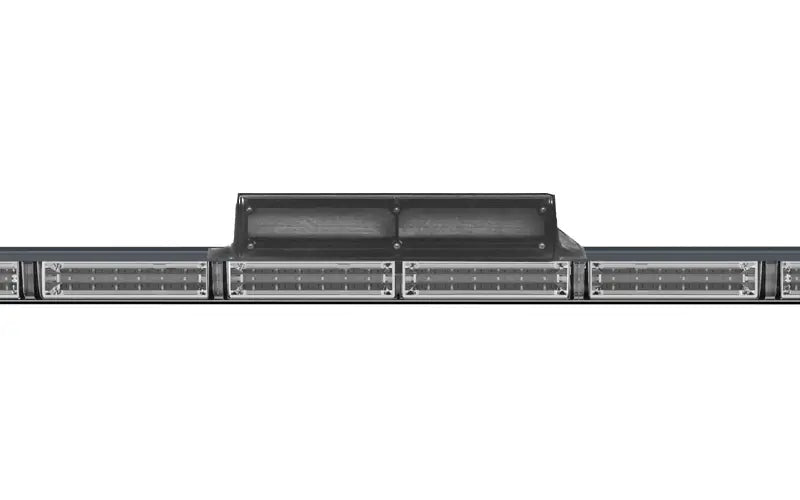

• Built-in siren/PA amplifier and a choice of 50 or 100 Watt slimline speaker.

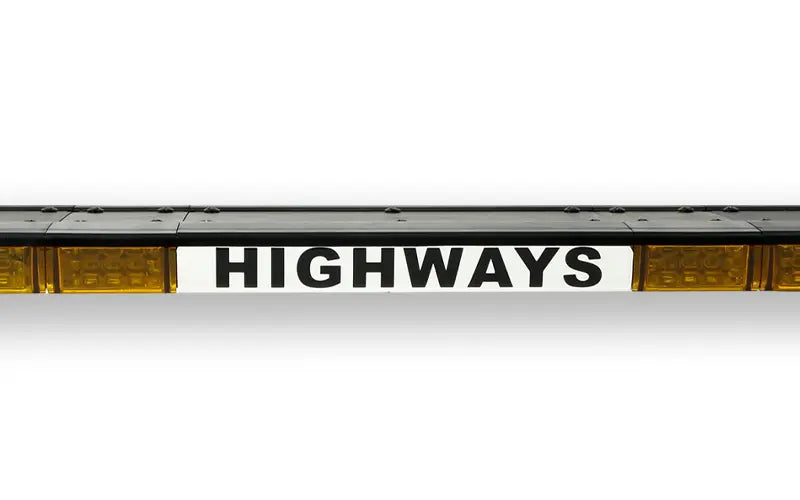

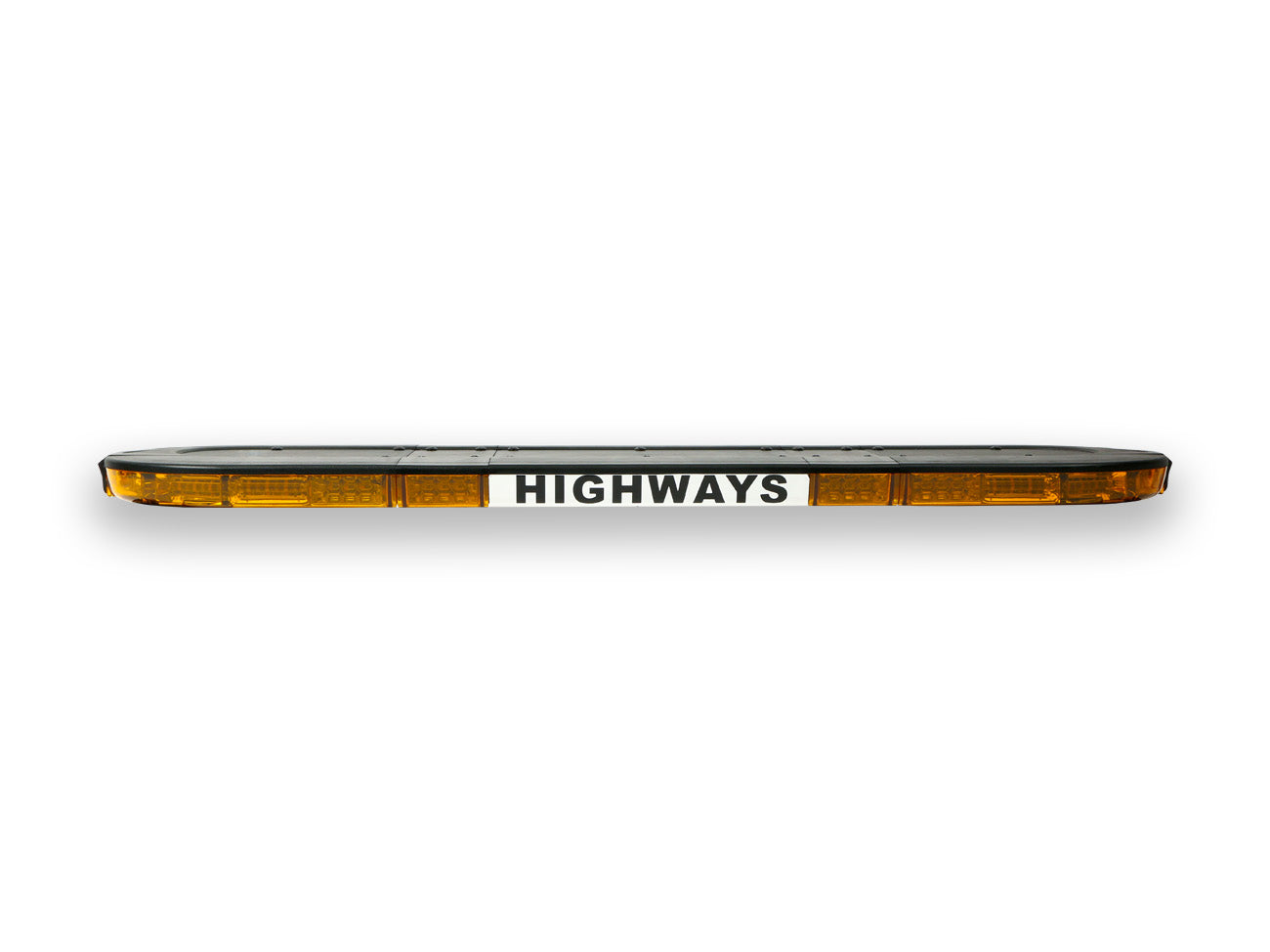

• LED illuminated centre sign to front and/or rear

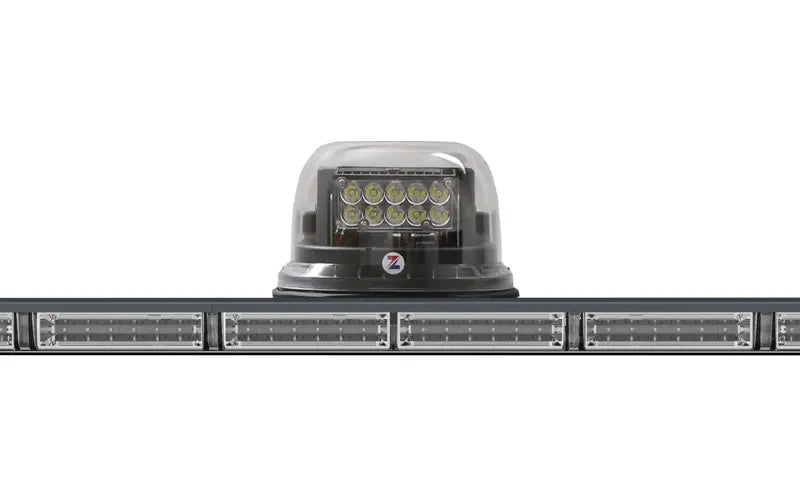

• Top mounted domed search light

The XL75 Lightbar is manufactured in the UK by Haztec.

XL75 Lightbar Video
Amber & Blue R65 Class 2 Approved under a Blue Lens Lightbar Demonstration
SmartSync - automatic vehicle to vehicle synchronisation.

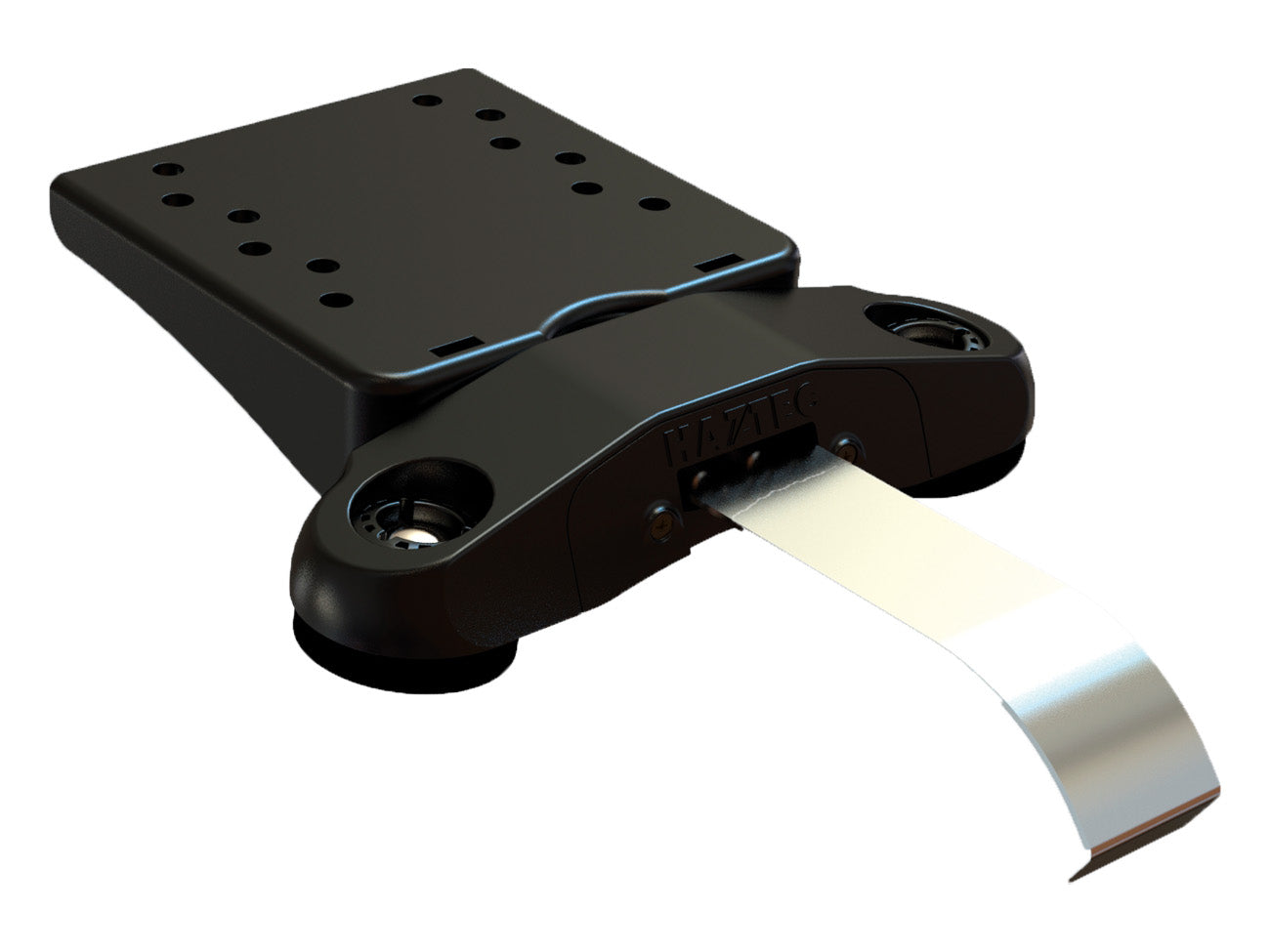

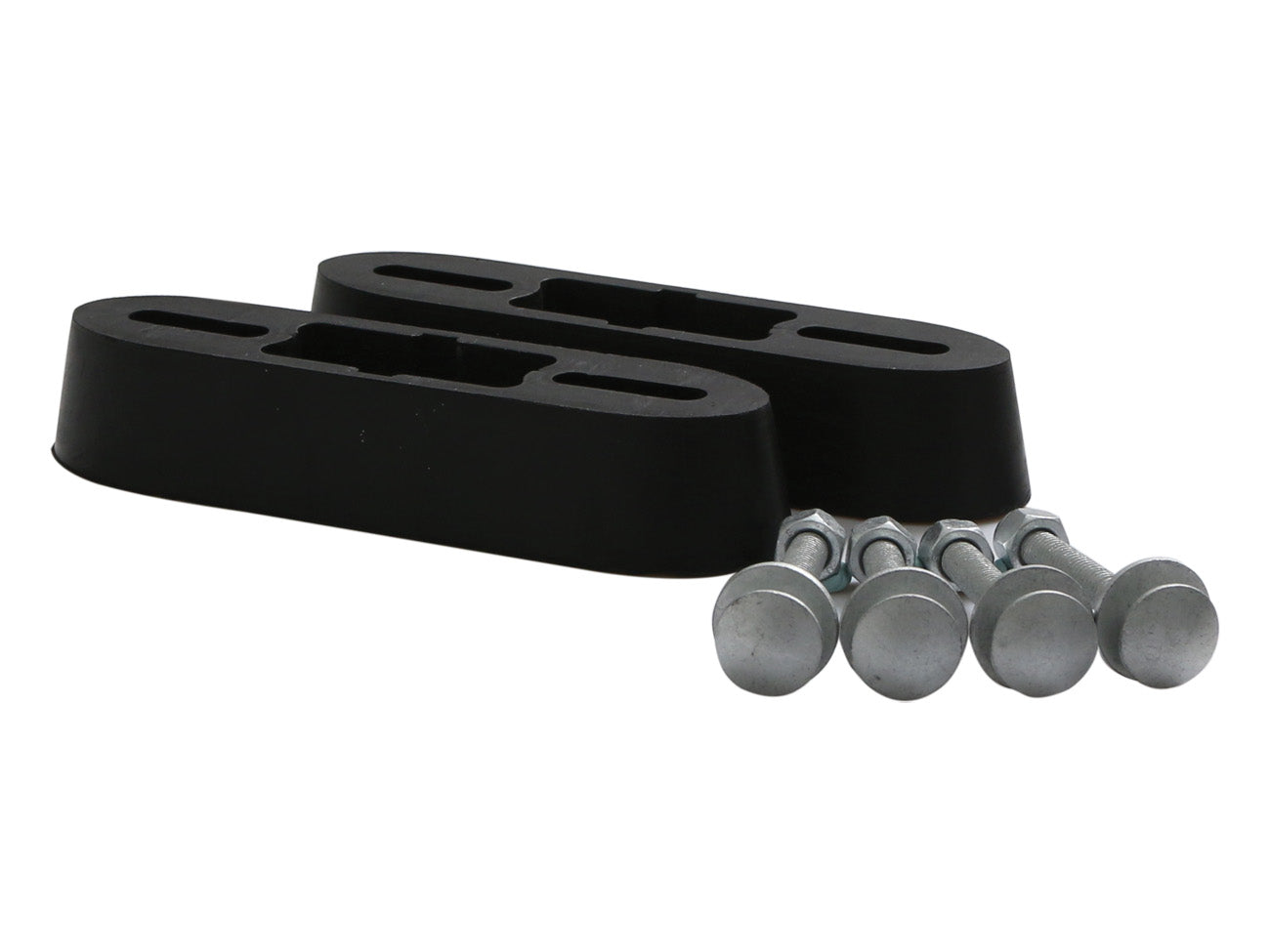

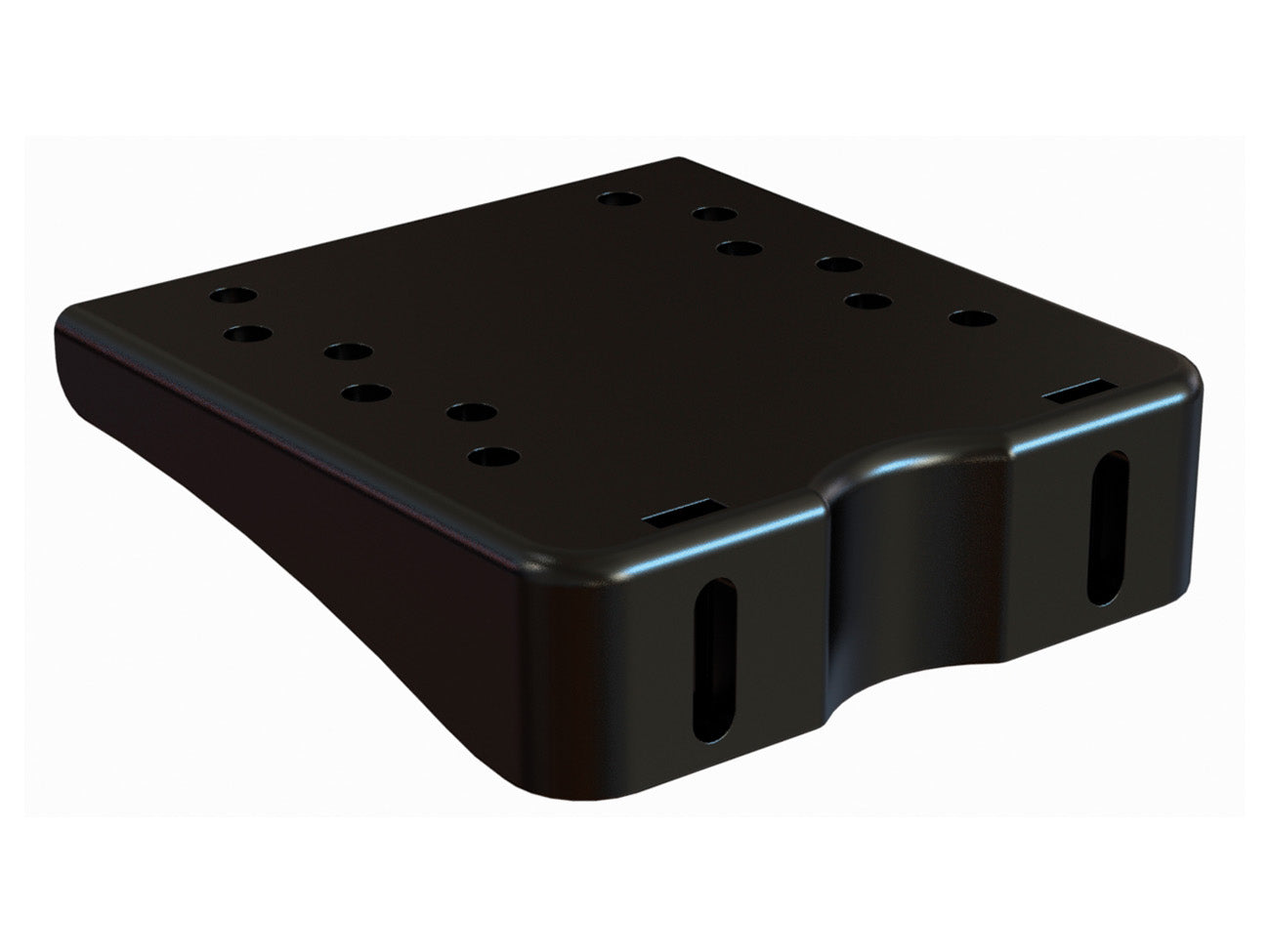

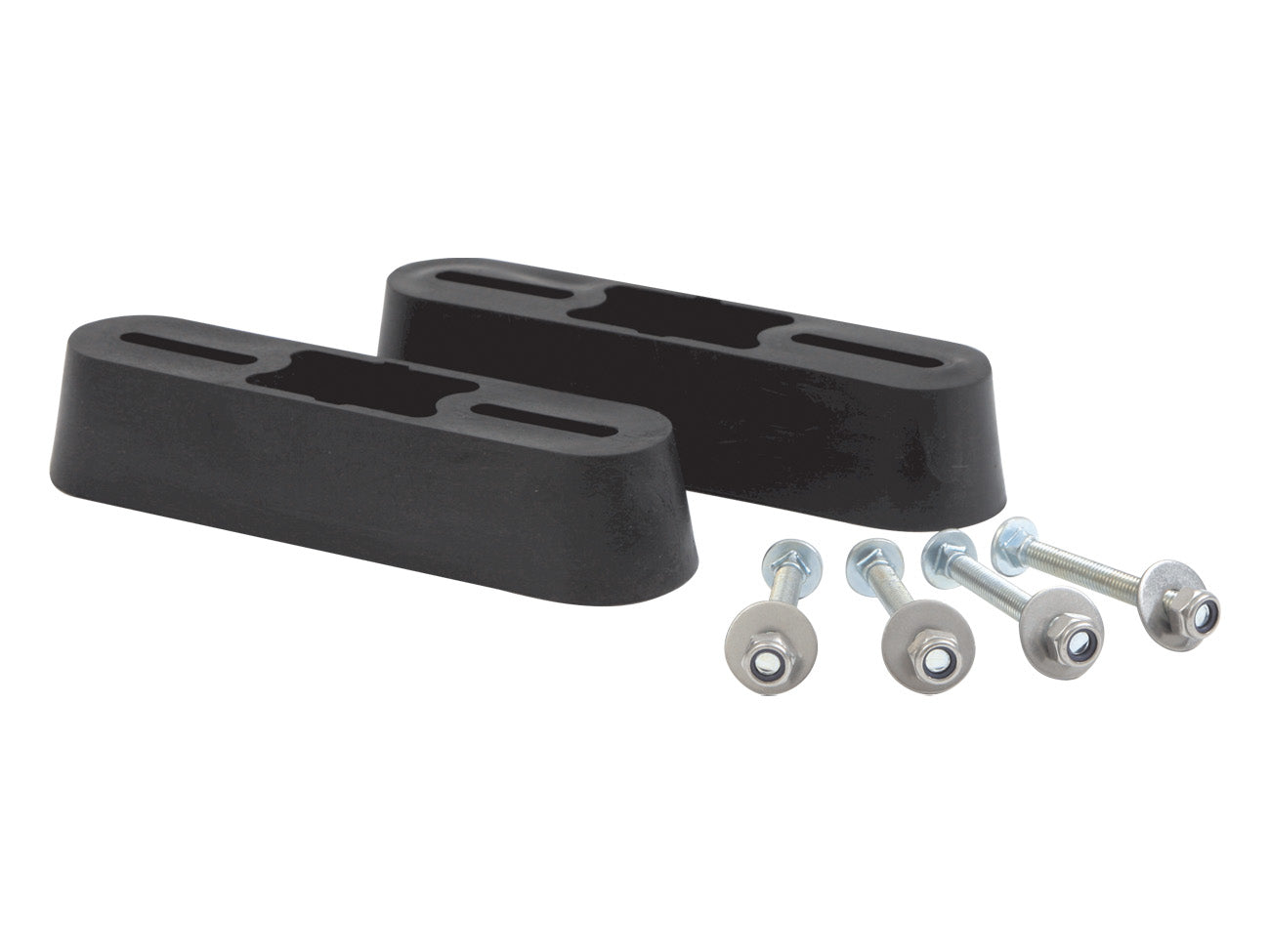

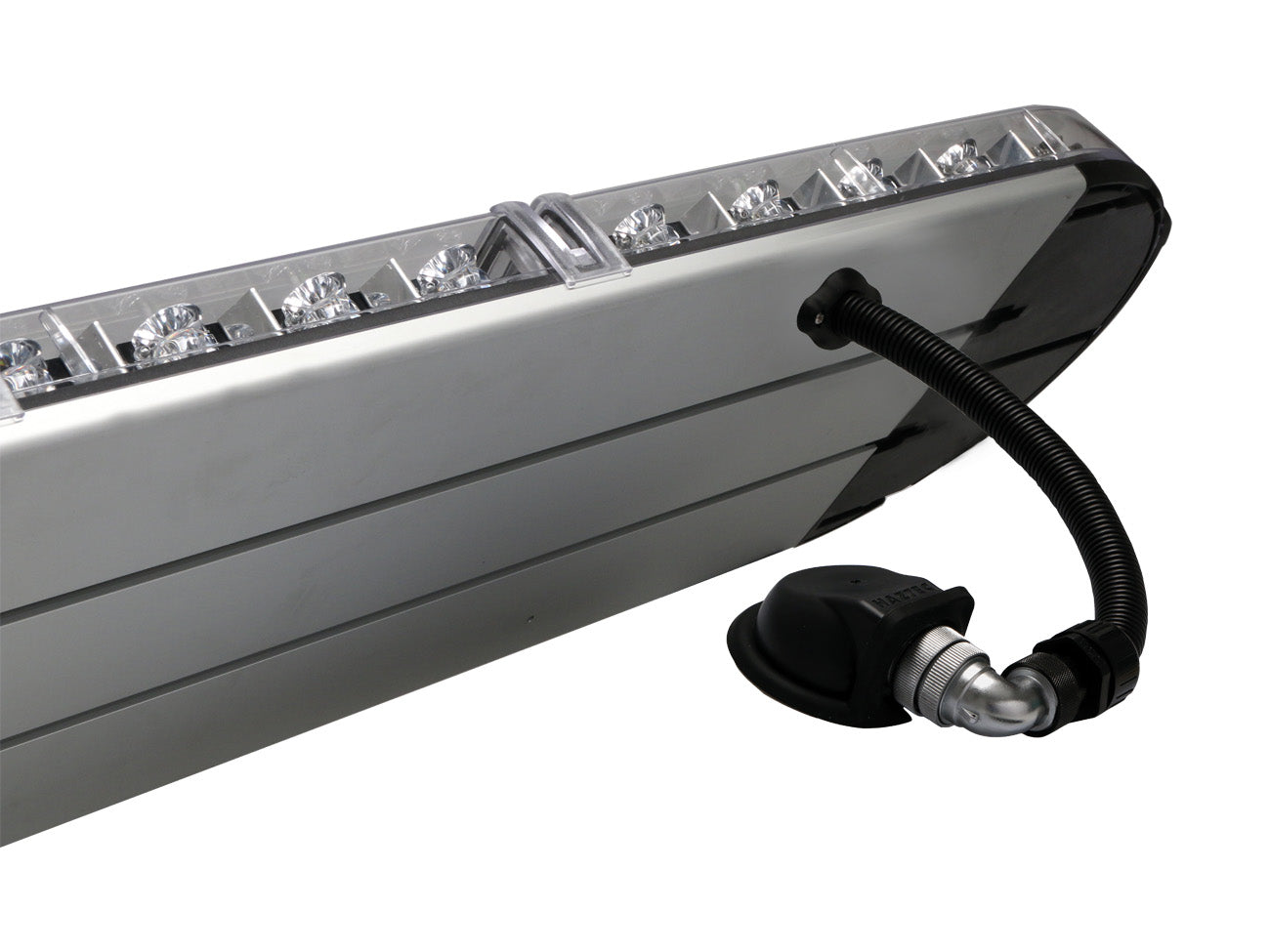

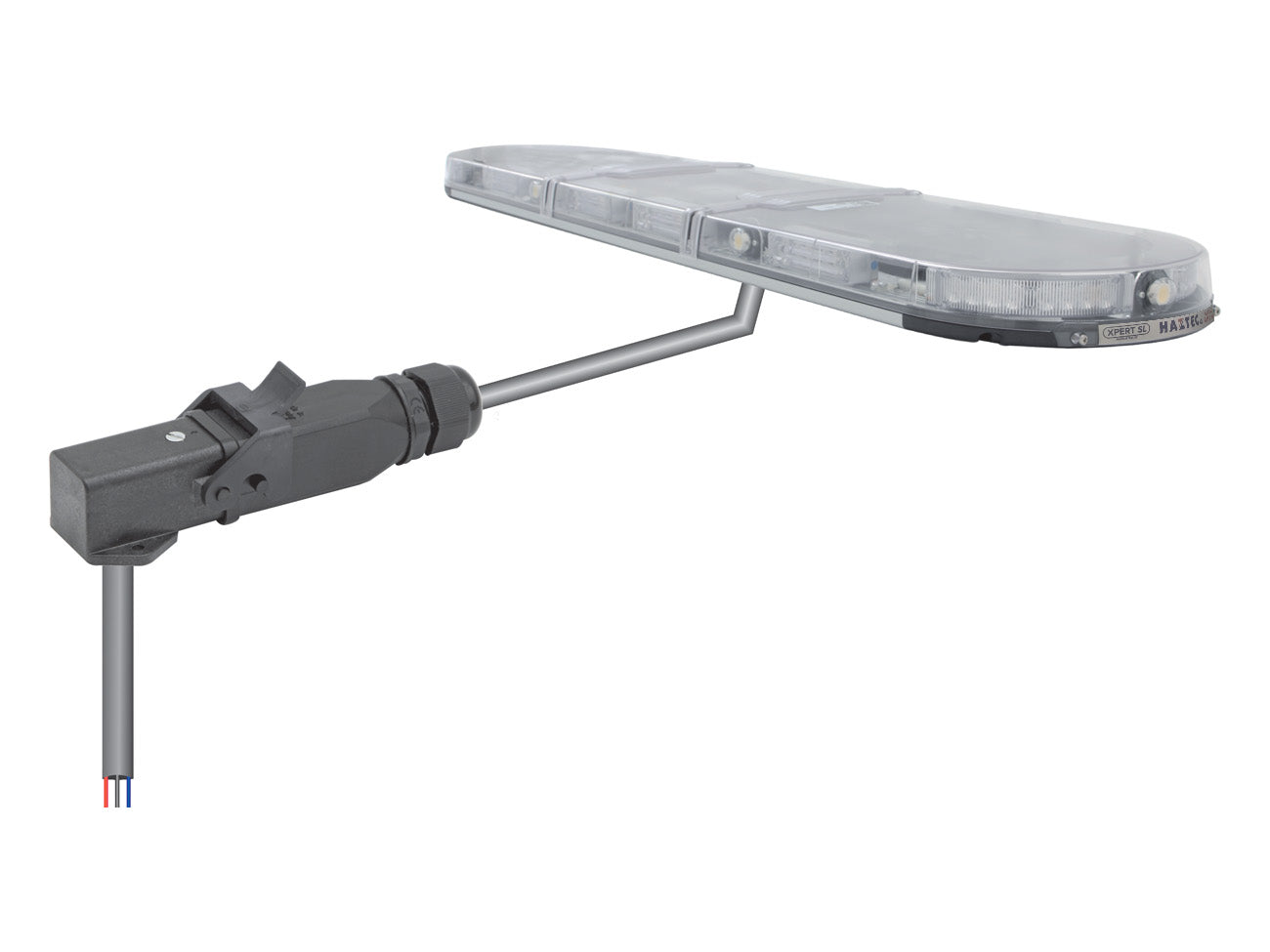

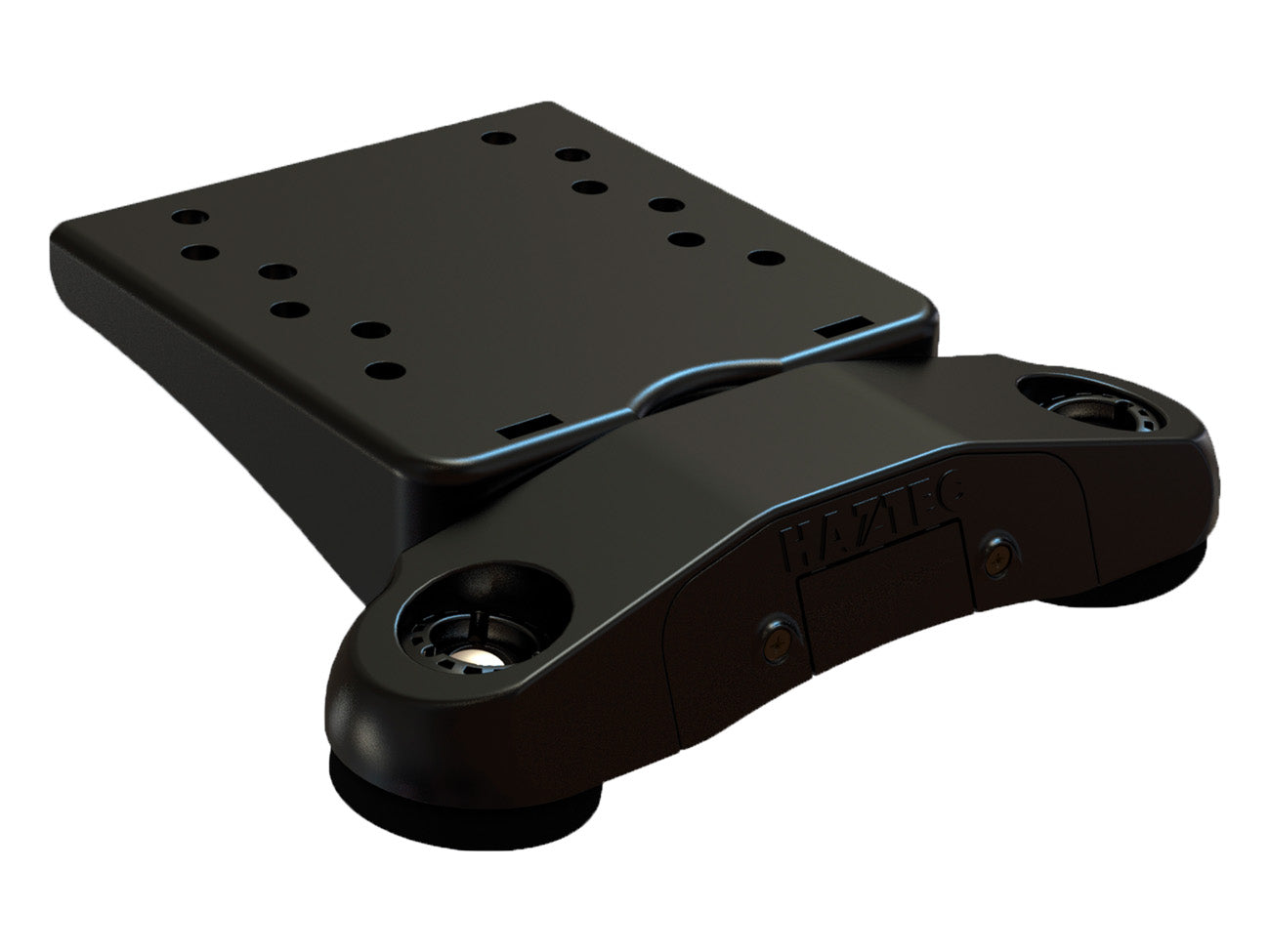

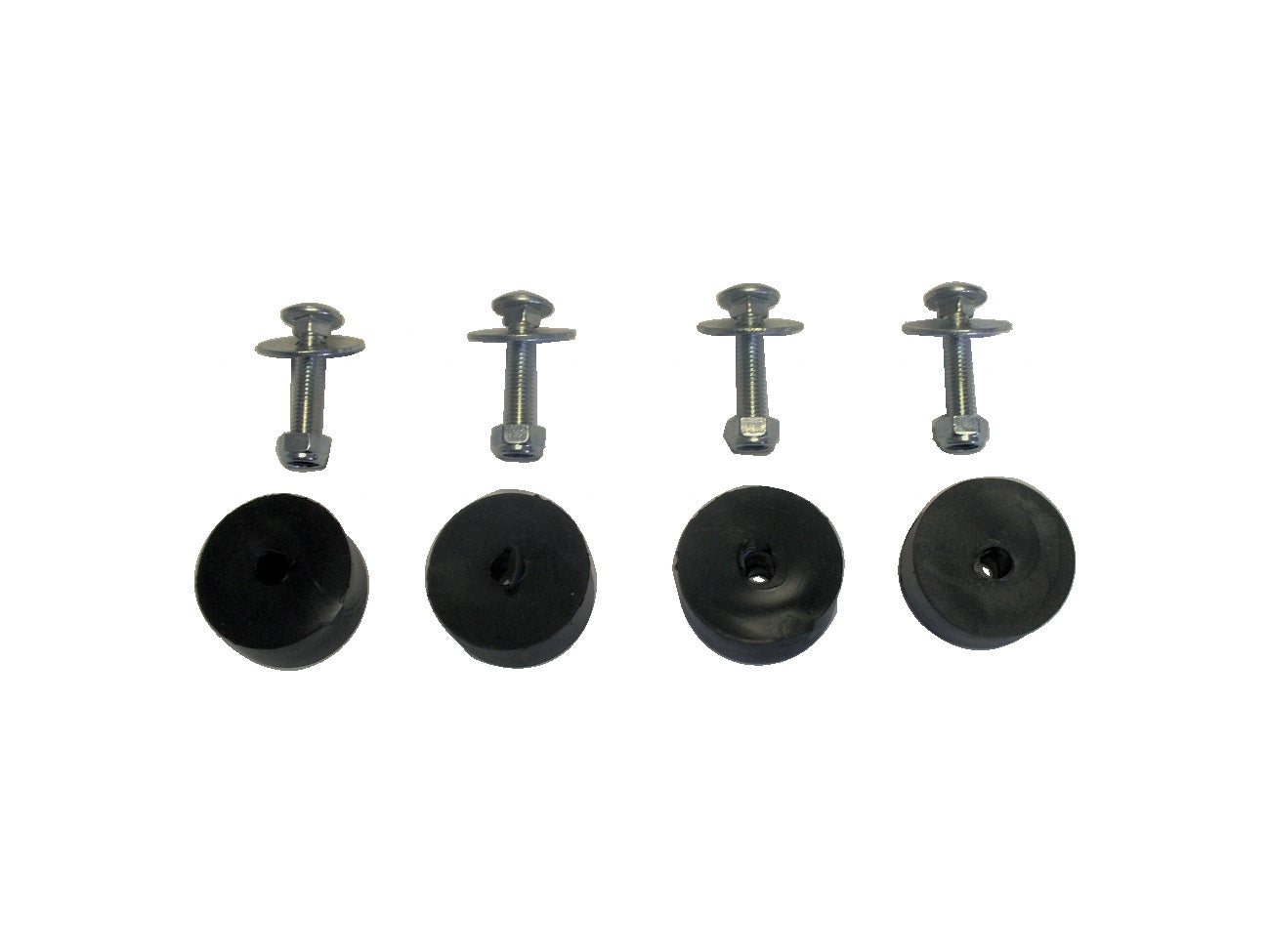

Datasheets - Haztec XL75 Lightbar Datasheets - Haztec Mount Kits & Roof Connectors for Lightbars

SPECIFICATIONS

• Colour Options: Single, Dual, Tri-Colour
• LED Colours: Amber, Blue, Red, Green, White
• Lens Colours: Amber, Blue, Clear, Red
• Top Colours: Black, Blue, Red
• R65 Certifications: R65 Class 2 Amber, R65 Class 2 Blue, R65 Class 2 Red
• Lengths: 628-1873mm
• Height: 46mm
• Depth: 297mm
• Supply Voltage: 10-30V
• Configurations: Message Signs, Sirens & Speakers, Search Light, Centre Signs & Arrowbar Functions
• Ancillary Lights: Alley, Spot/Takedown, Stop/Tail/Turn & Reverse Lights
• Material: Strong UV stabilised polycarbonate lenses; rigid anodised extruded aluminium mounting rails
• Warranty: 5 years for LEDs
