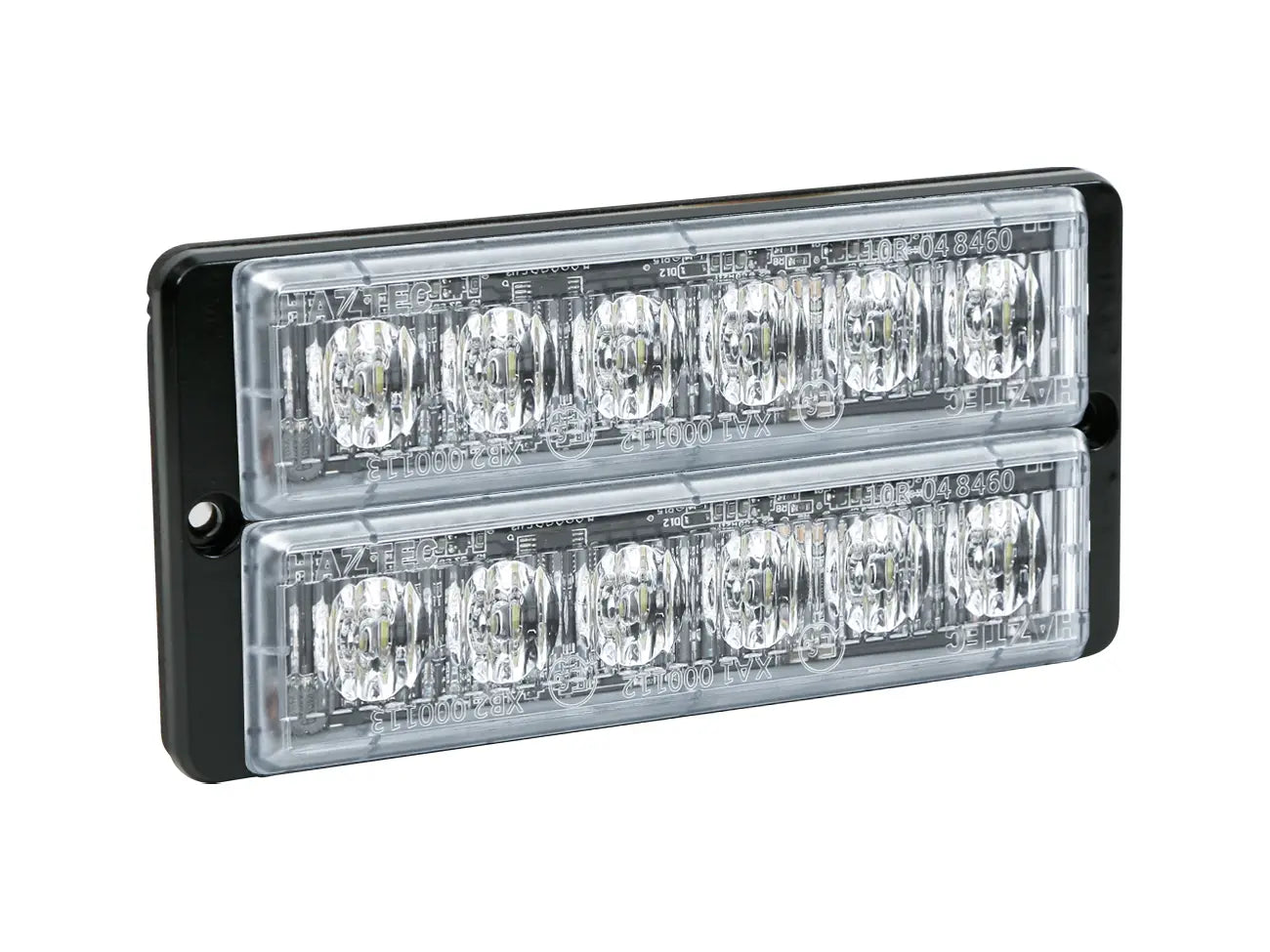

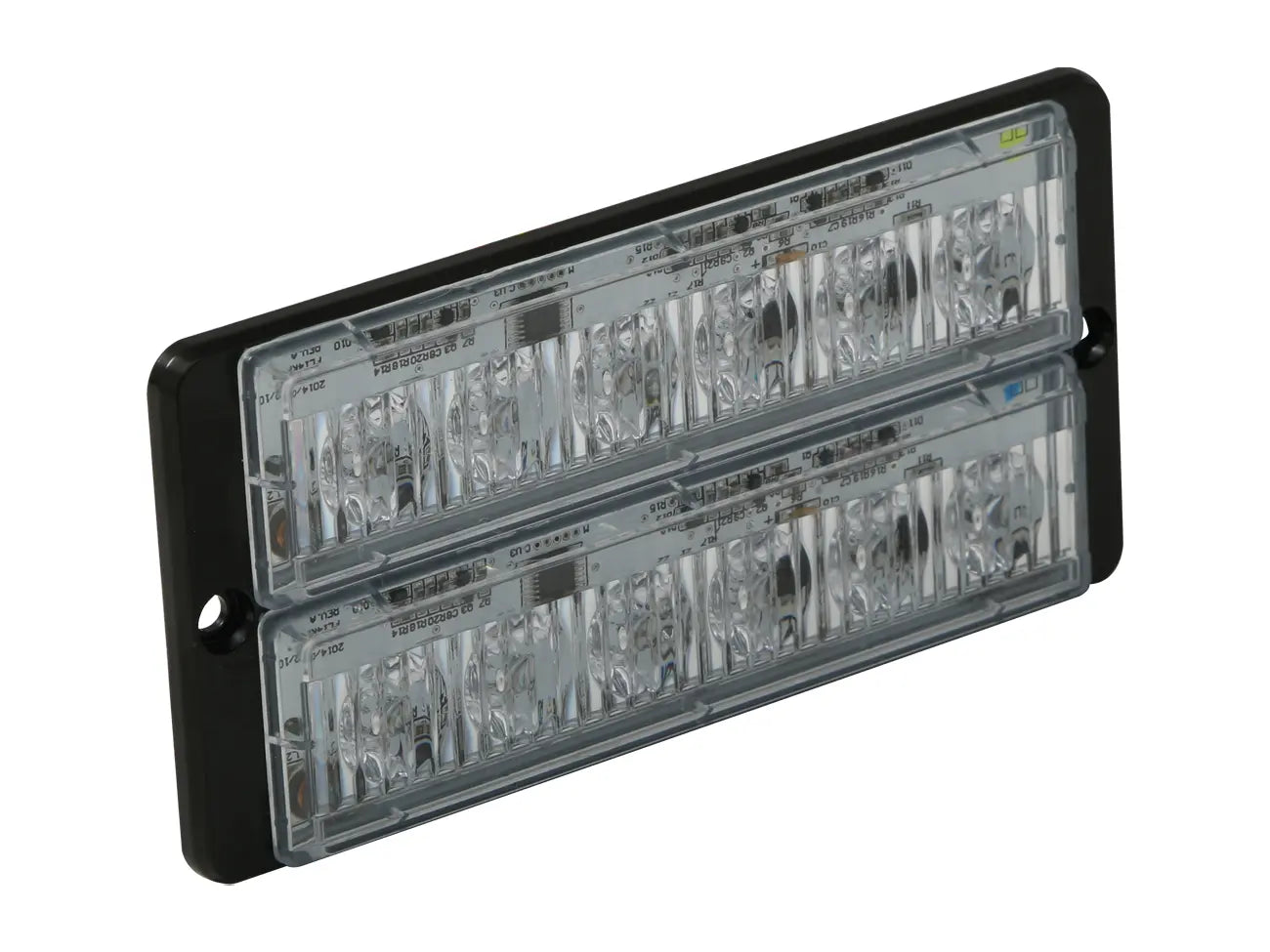

Ultra Slim 2x 6 LED Warning Light
- • Low Profile (10mm Deep)
- • R65 Approval in Amber & Blue
- • Built-In Flasher with up to 27 Patterns
- • Synchronisation Capability for Multiple Units
LED Mode:
LED Mode
LED Colour:R65 Class 1 Amber
Quantity:
Choose options
- • Low Profile (10mm Deep)
- • R65 Approval in Amber & Blue
- • Built-In Flasher with up to 27 Patterns
- • Synchronisation Capability for Multiple Units
LED Mode:
LED Mode
LED Colour:R65 Class 1 Amber
Quantity:
- • Low Profile (10mm Deep)
- • R65 Approval in Amber & Blue
- • Built-In Flasher with up to 27 Patterns
- • Synchronisation Capability for Multiple Units
LED Mode:
LED Mode
LED Colour:R65 Class 1 Amber
Quantity:
- 4-10016-D ultra slim R65 2x 6 LED 18 Watt warning light
- Surface mount
- Single or two colours
- Built-in flasher with selectable patterns
- Night dim and cruise modes
- Synchronisation capability for multiple units
- Matching ECE approved R6/R7 Stop Tail Turn and R23 Reverse lights available which can be combined with a 4-10016 warning light in a single housing requiring just two screws to surface mount
- 10-40VDC for 12 or 24V use
- No of LEDs: 2x 6LED
- Flash Patterns: Up to 27 Built-In Patterns
- Approval: R10, R65 (Class 1 Amber, Class 2 Blue & Class 2 Red), IP67
- Dimensions (mm): 124W x 10D x 60H
- Sync: Multiple Units Can Be Synchronised for Simultaneous or Alternating Flashing
- Modes: Cruise (Constant Low Level Illumination) and Night Dim Modes
- Supply Voltage: 10-40V
- Warranty: 5 Years
Product Data Sheets
4-10016 6 & 2x6 LED Warning Lights
Instruction Sheets
4-10016 & 4-10016-D LED warning lights (M017.1.4)
