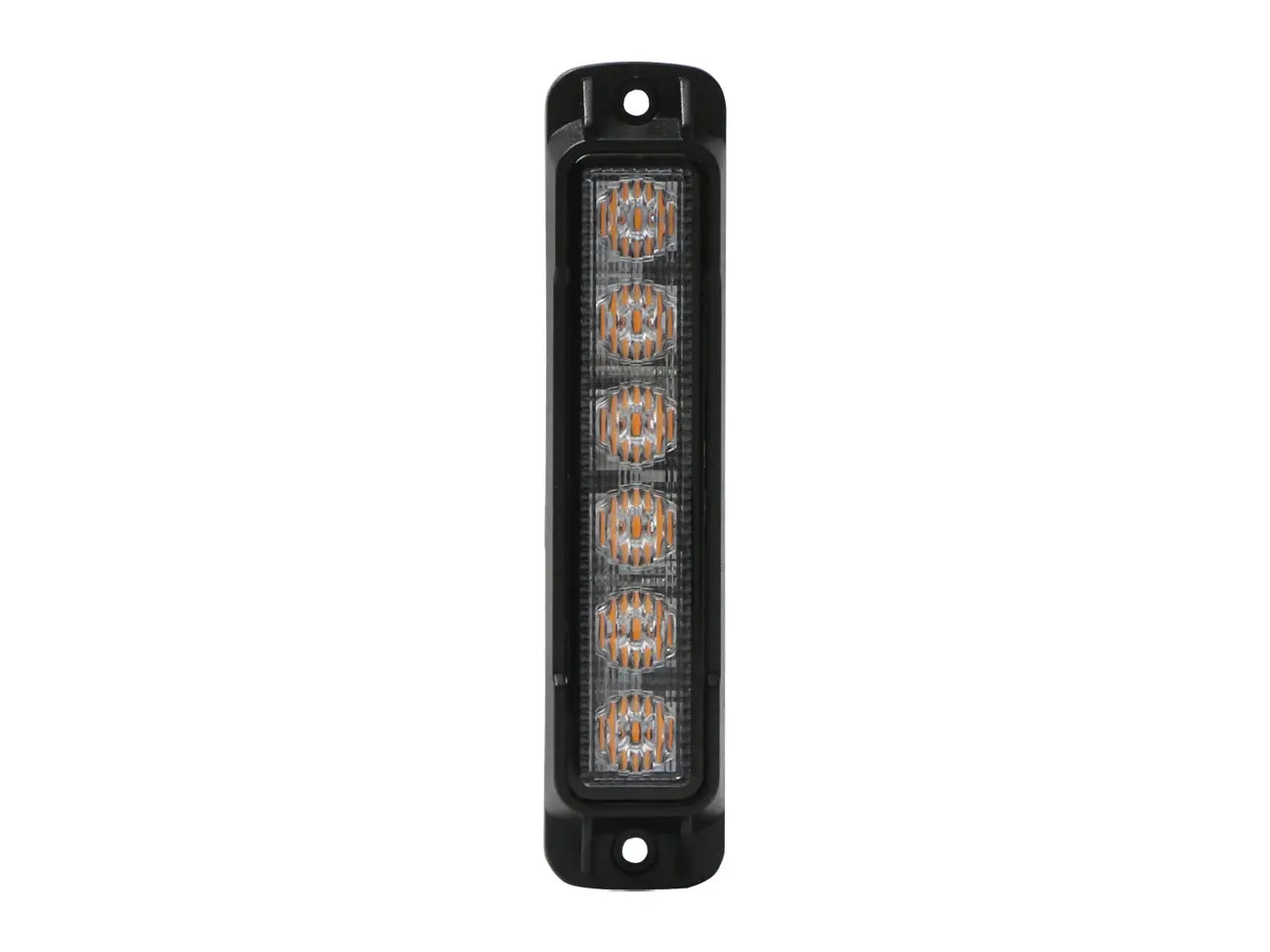

Slim 6 LED Warning Light - Vertical Mount
- • Slimline Profile (12.7mm Visible Depth)
- • Built-In Flasher with Multiple Patterns
- • Purpose Designed Optics Produce a Wide Horizontal Beam Spread
LED Colour:R65 Class 1 Amber
Quantity:
Choose options
- • Slimline Profile (12.7mm Visible Depth)
- • Built-In Flasher with Multiple Patterns
- • Purpose Designed Optics Produce a Wide Horizontal Beam Spread
LED Colour:R65 Class 1 Amber
Quantity:
- • Slimline Profile (12.7mm Visible Depth)
- • Built-In Flasher with Multiple Patterns
- • Purpose Designed Optics Produce a Wide Horizontal Beam Spread
LED Colour:R65 Class 1 Amber
Quantity:
PRODUCT DESCRIPTION
- 4-3056-V 18W 6LED slim R65 directional warning light for vertical mount
- R65 Class 1 amber, Class 1 blue, Class 1 red or white
- Matching ECE approved R6 Turn, R6/R7 Stop Tail and Stop Tail Turn and R23 Reverse lights also available
- Also available in a number plate housing
- 10-30VDC for 12 or 24V use
- Surface mount
Datasheets - 4-3054 & 4-3056 Slim Compact Economy Warning Lights
SPECIFICATIONS
- No of LEDs: 6
- Approval: R10, R65 (Class 1 Amber, Blue and Red), IP67
- Dimensions (mm): 130H x 13D x 28.5W
- Sync: Multiple Units Can Be Synchronised for Simultaneous or Alternating Flashing
- Modes: Cruise (Constant Low Level Illumination) and Night Dim Modes
- Supply Voltage: 10-30V
- Warranty: 3 Years
TESTED & CERTIFIED
For your peace of mind, we submit our products to rigorous testing and independent certification to all
relevant international standards.
