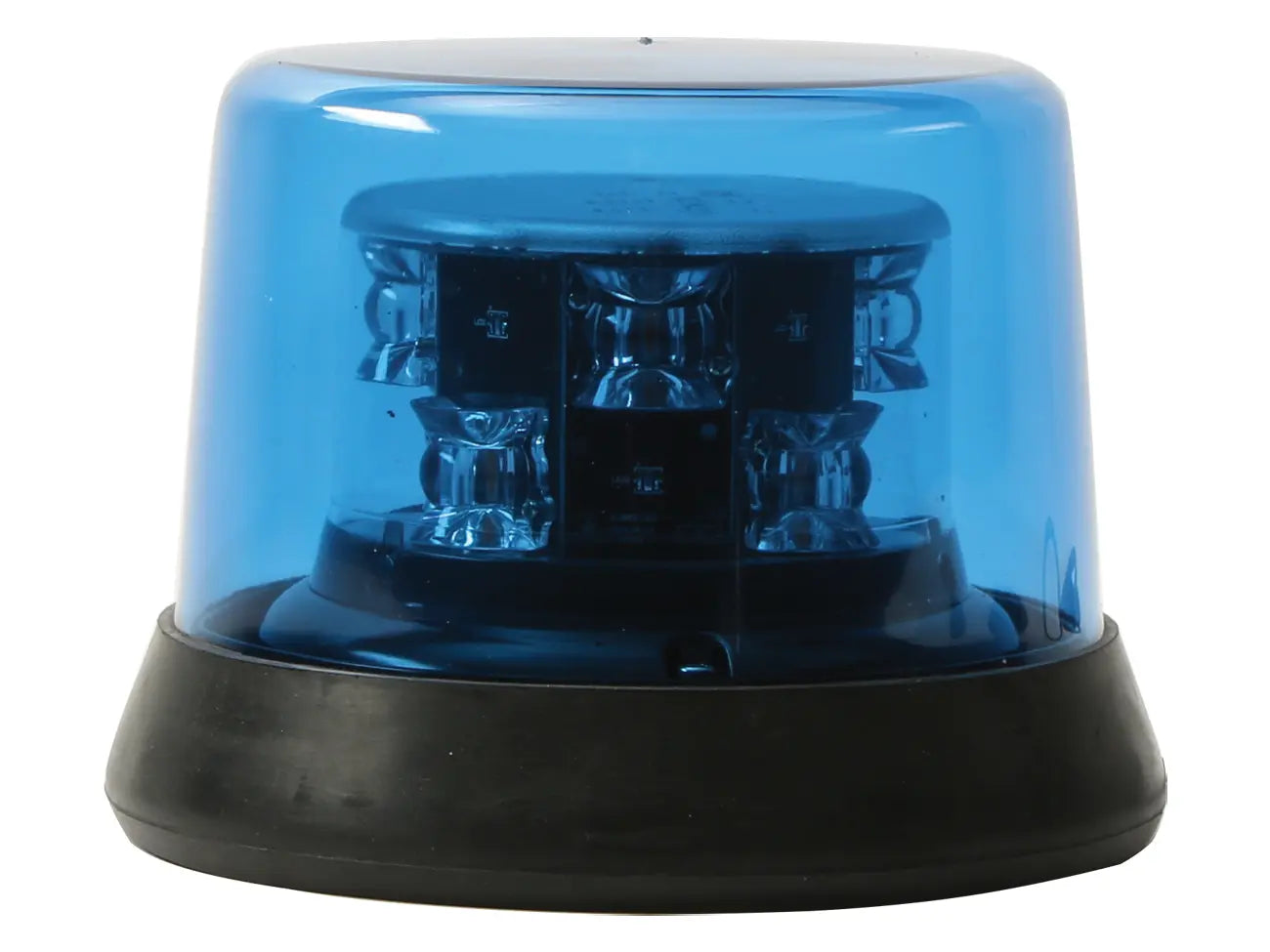

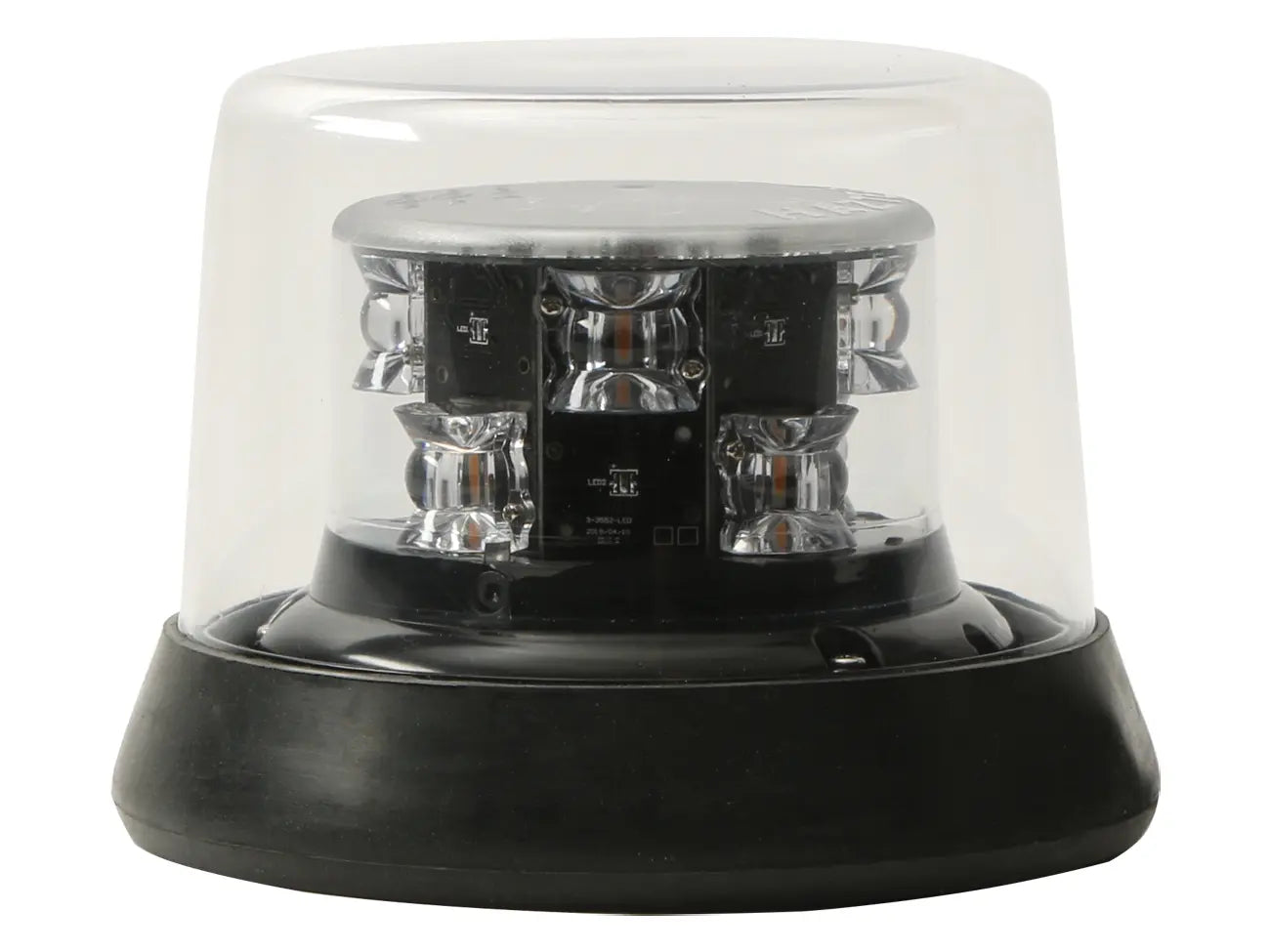

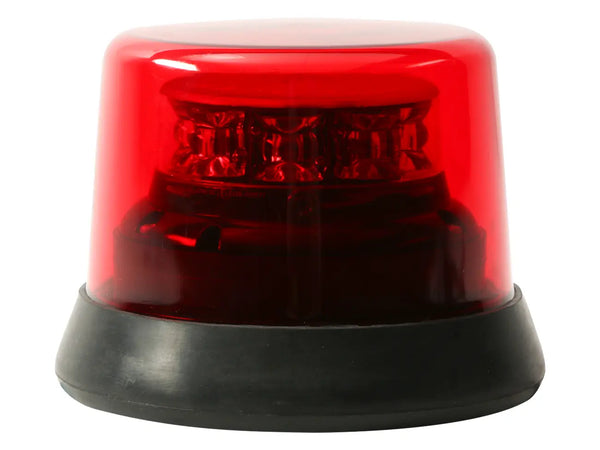

Impact V 8 LED Large Format Beacon
- • 8x 3W Generation 3 LEDs with Highly Effective Optic Lens in a 138mm High Housing
- • Robust Outer Shell Provides Exceptional Protection Against Water Ingress and Impact
- • Rugged Cast Metal Base with Weatherproof Seal
LED Colour:R65 Class 1 Amber
Lens Colour:
Lens Colour
Quantity:
Choose options
- • 8x 3W Generation 3 LEDs with Highly Effective Optic Lens in a 138mm High Housing
- • Robust Outer Shell Provides Exceptional Protection Against Water Ingress and Impact
- • Rugged Cast Metal Base with Weatherproof Seal
LED Colour:R65 Class 1 Amber
Lens Colour:
Lens Colour
Quantity:
- • 8x 3W Generation 3 LEDs with Highly Effective Optic Lens in a 138mm High Housing
- • Robust Outer Shell Provides Exceptional Protection Against Water Ingress and Impact
- • Rugged Cast Metal Base with Weatherproof Seal
LED Colour:R65 Class 1 Amber
Lens Colour:
Lens Colour
Quantity:
PRODUCT DESCRIPTION
Large format R65 8 LED beacon with built-in flasher with selectable patterns, night dim and cruise mode options and synchronisation capability for multiple units, 10-40VDC suitable for 12 or 24V use, permanent mount, R65 Class 1 amber, Class 2 blue, or red or white LEDs
Manufactured in the UK by Haztec.
Datasheets - Haztec Large Format LED Beacons
SPECIFICATIONS
- Profile: Large Format
- No of LEDs: 8
- Dimensions: 138mm High x Diameter 150mm (Lens) / 183mm (Base)
- R65 Certifications: R65 Class 1 Amber, Class 2 Blue
- Supply Voltage: 10-40V
- Material: Strong UV Stabilised Polycarbonate Lens
- Warranty: 5 Years
TESTED & CERTIFIED
For your peace of mind, we submit our products to rigorous testing and independent certification to all
relevant international standards.
