EuroSmart Class D Programmable Siren/PA Amplifier - LINbus/CANbus
- • Class D Technology for Maximum Sound Output and Long Speaker Life
- • 10-200W Variable Output Programmable
- • Up to 28 Tones Including Numerous Country Tones
Voltage:
Voltage
Protocol:
Protocol
Quantity:
Choose options
- • Class D Technology for Maximum Sound Output and Long Speaker Life
- • 10-200W Variable Output Programmable
- • Up to 28 Tones Including Numerous Country Tones
Voltage:
Voltage
Protocol:
Protocol
Quantity:
- • Class D Technology for Maximum Sound Output and Long Speaker Life
- • 10-200W Variable Output Programmable
- • Up to 28 Tones Including Numerous Country Tones
Voltage:
Voltage
Protocol:
Protocol
Quantity:
PRODUCT DESCRIPTION

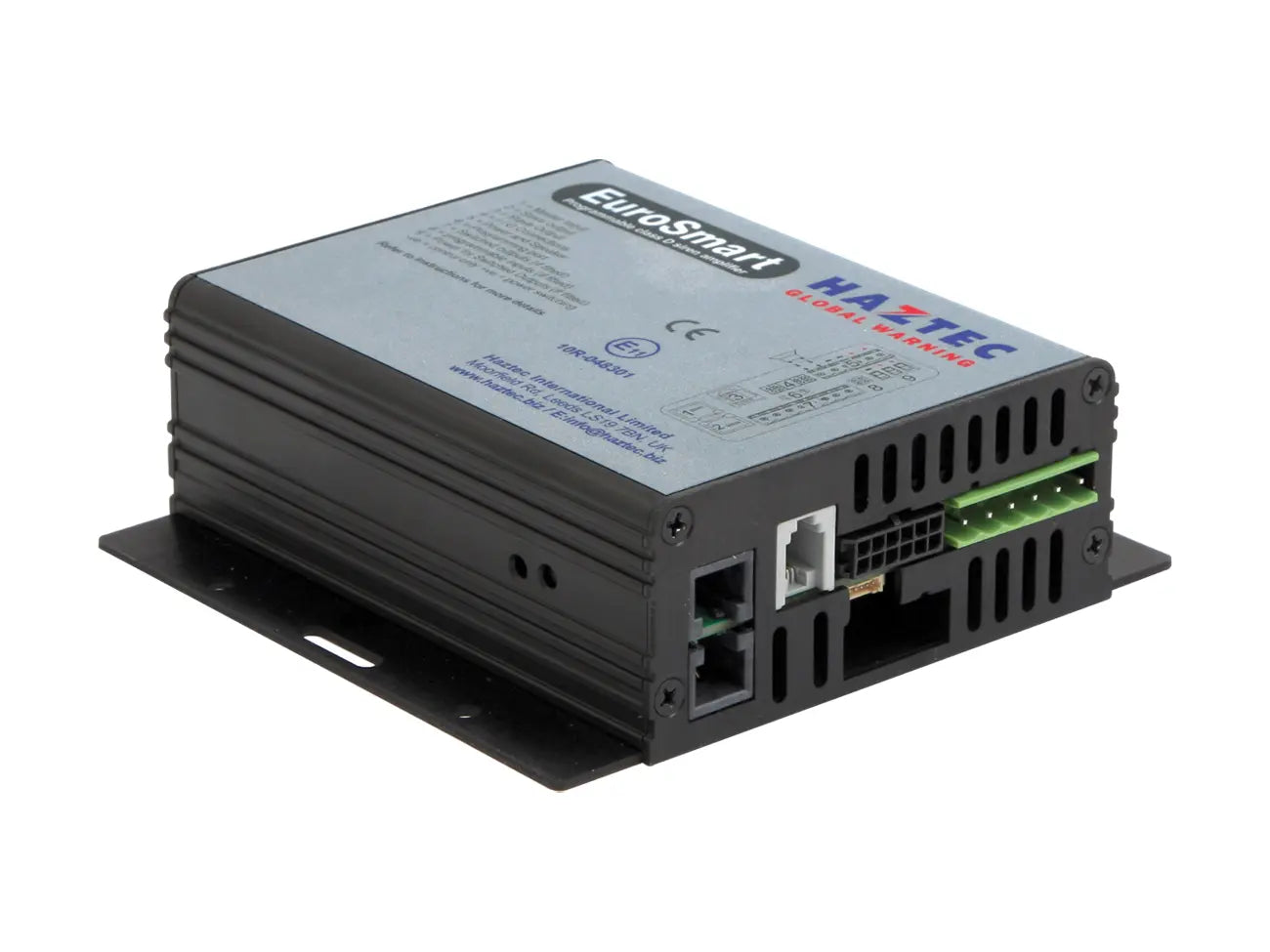

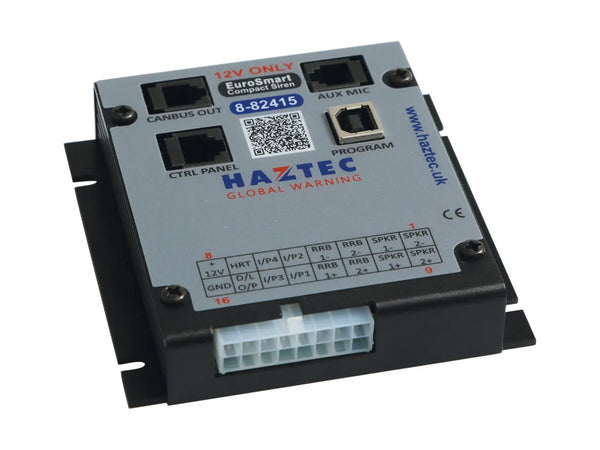

- EuroSmart compact, lightweight 10-200W Class D variable output programmable siren/PA amplifier
- Up to 6 tones from a choice of 28, including numerous country tones
- CANbus or LINbus protocol with up to 8 built-in switched outputs
- Works with Haztec EuroSmart handsets and dash mount controllers or as a standalone siren amplifier
- Optional plug-in speech record/PA microphone available
- 10-30VDC for 12 or 24V use
Datasheets - 8-82613 EuroSmart Class D Compact Siren/PA Amplifier
SPECIFICATIONS
- Protocol: LINbus or CANbus
- Approval: R10, Class D
- Number of Siren Tones: Choice of up to 28

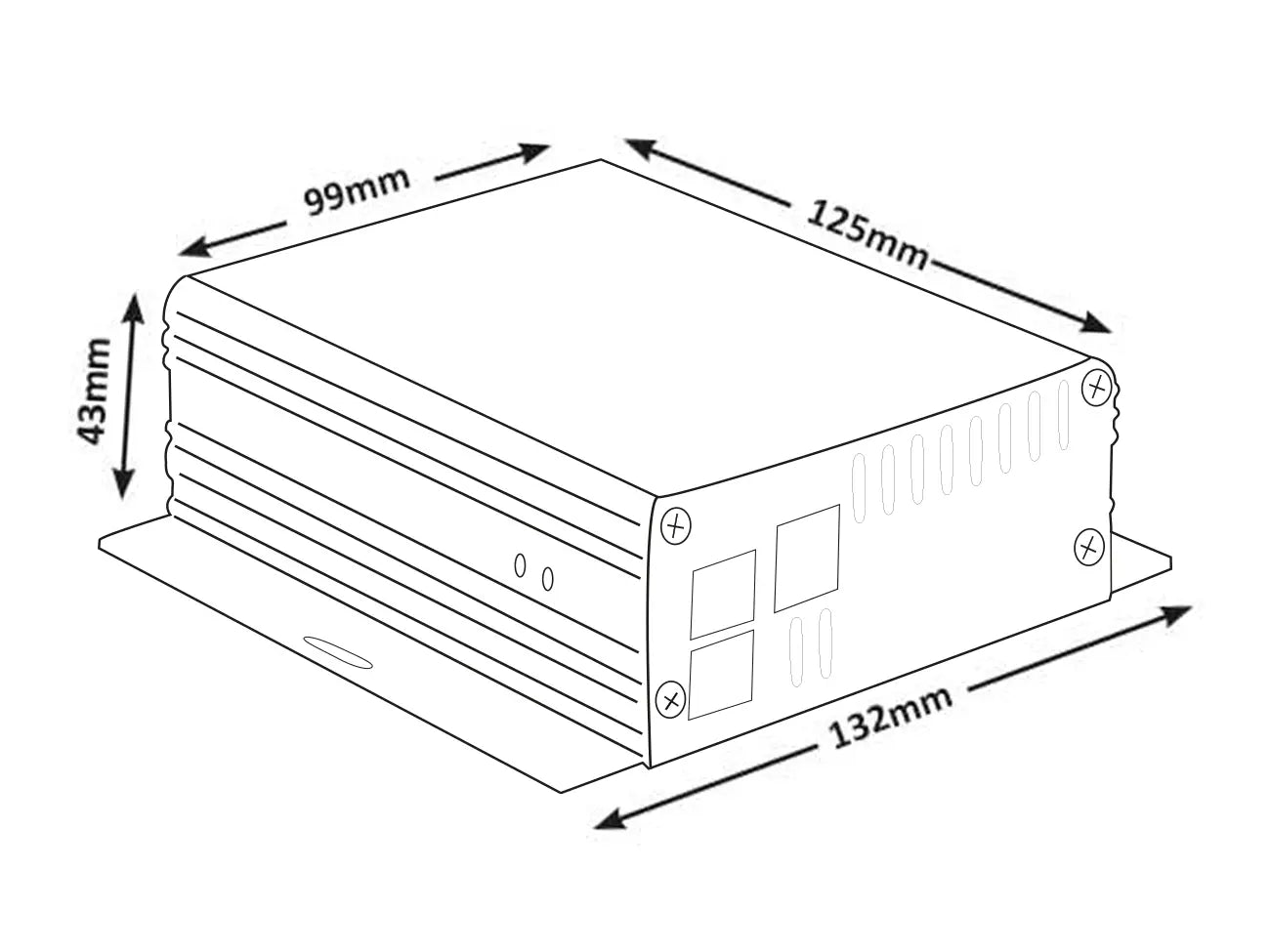

- Dimensions (mm): 99W (132 incl. Mounting Base) x 125D x 43H
- Wattage: 10-200W
- Nominal Voltage: 12/24V
- Operating Voltage: 10-30V
- Operating Temperature: -40°C to +50°C
- Warranty: 3 Years
