12 LED Angle Down Scene Light, 800lm
- • Low current draw, typically 0.75A at 13.8V - power regulated design compensates for supply voltage fluctuations
- • Light concentrated between 0 and 30 degrees below horizontal
- • Beam width 20 degrees either side of vertical

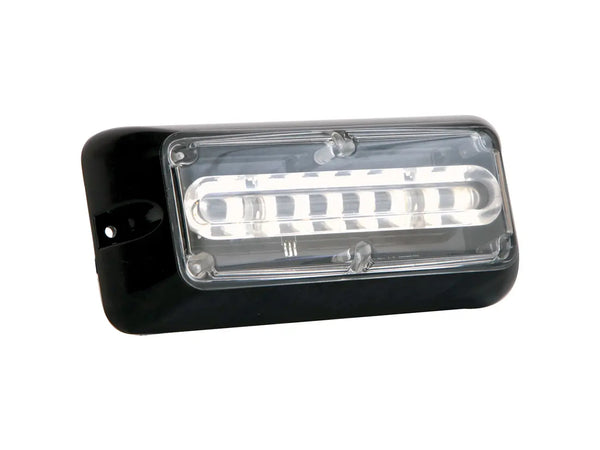

- • Matching 4-10409 warning light available
Bezel Colour:
Bezel Colour
Quantity:
Choose options
- • Low current draw, typically 0.75A at 13.8V - power regulated design compensates for supply voltage fluctuations
- • Light concentrated between 0 and 30 degrees below horizontal
- • Beam width 20 degrees either side of vertical
- • Matching 4-10409 warning light available
Bezel Colour:
Bezel Colour
Quantity:
- • Low current draw, typically 0.75A at 13.8V - power regulated design compensates for supply voltage fluctuations
- • Light concentrated between 0 and 30 degrees below horizontal
- • Beam width 20 degrees either side of vertical
- • Matching 4-10409 warning light available
Bezel Colour:
Bezel Colour
Quantity:
PRODUCT DESCRIPTION

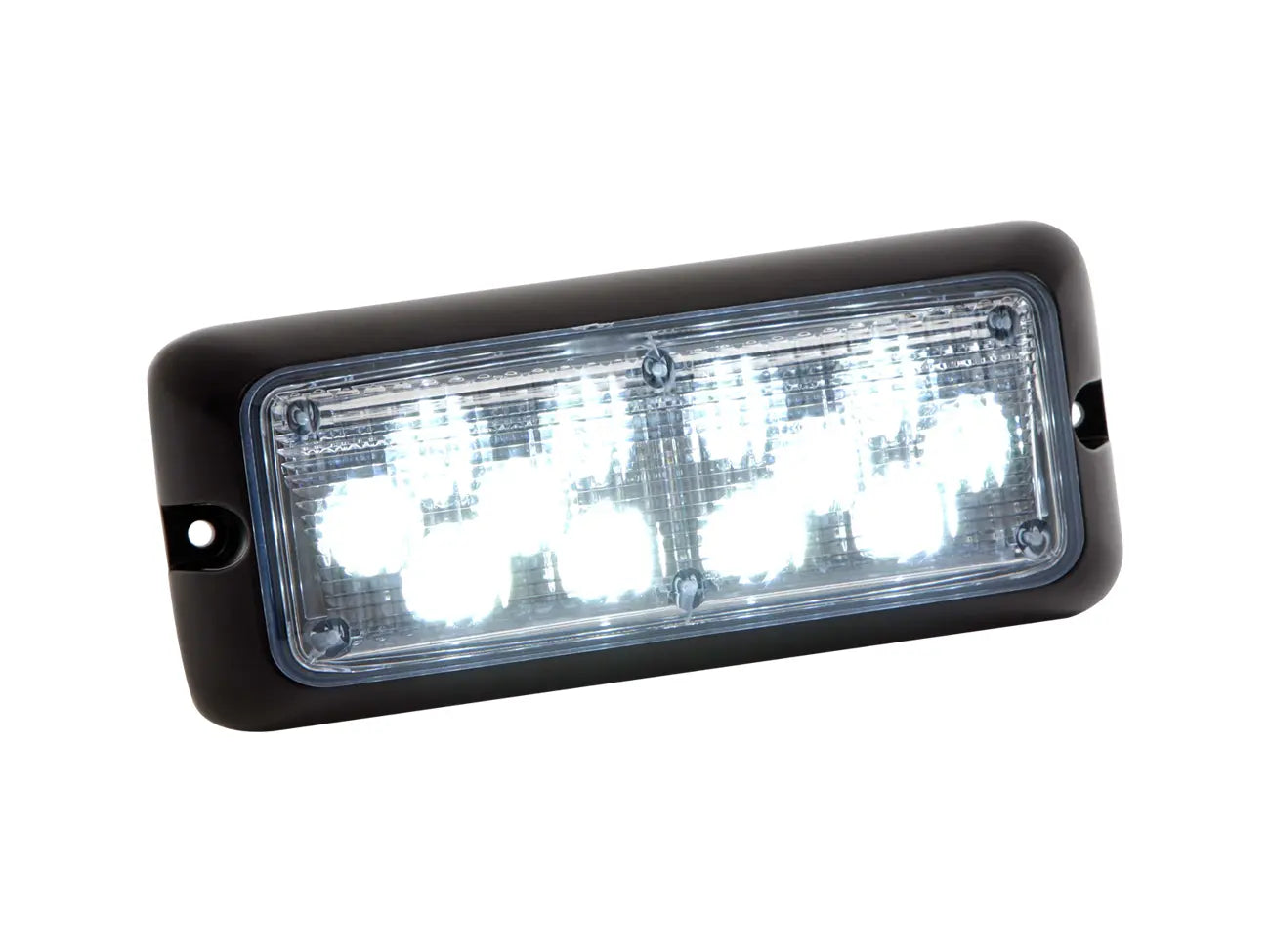

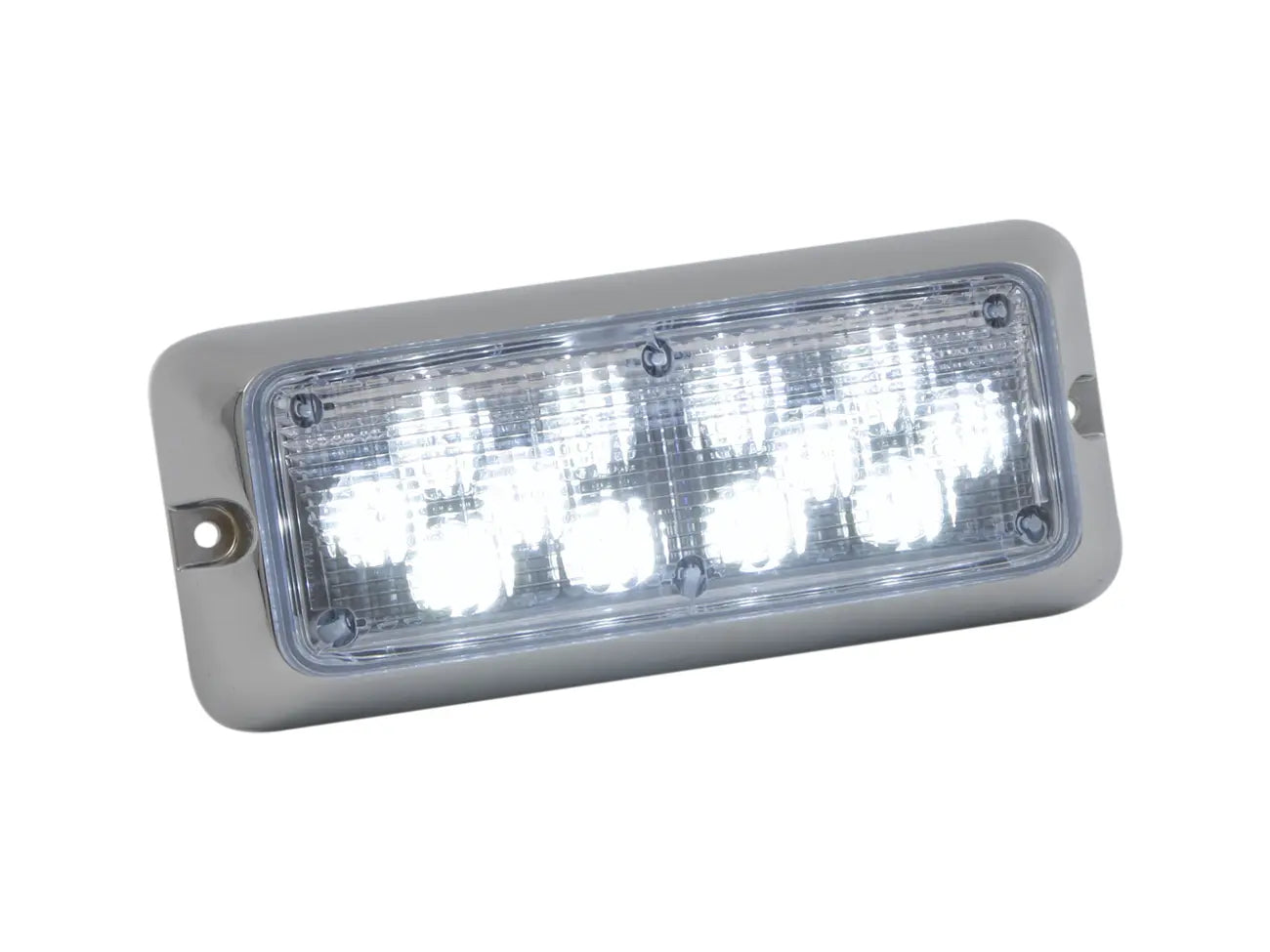

- 800 lumen output 12 LED scene light with 0-30 degree angle down and 20 degree right/left beam pattern
- 10-40VDC for 12 or 24V use.
- Two hole surface mount with rubber seal - no need to cut recesses in vehicle bodywork
- Purpose-designed optics direct light downward and gives very precise output

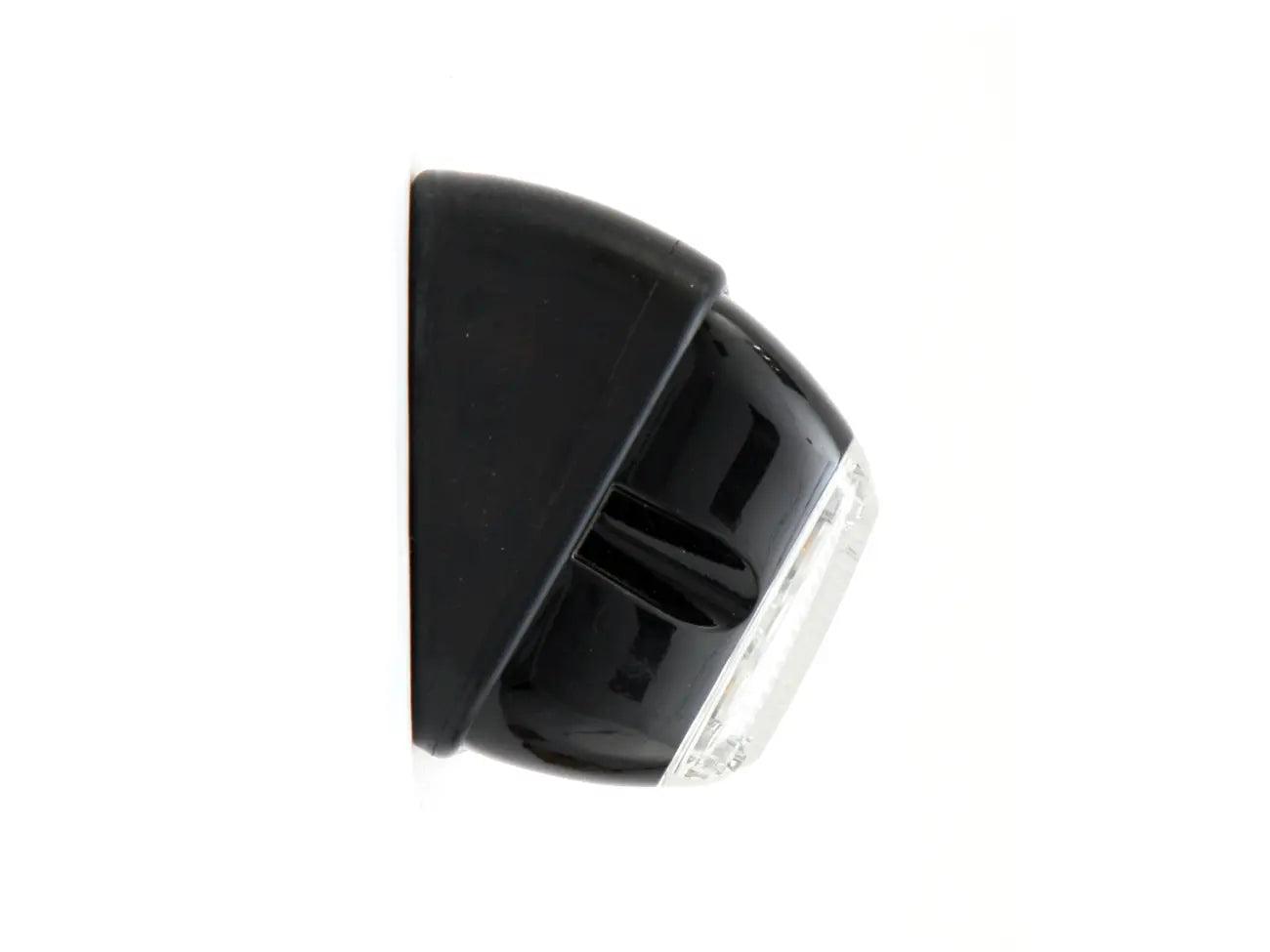

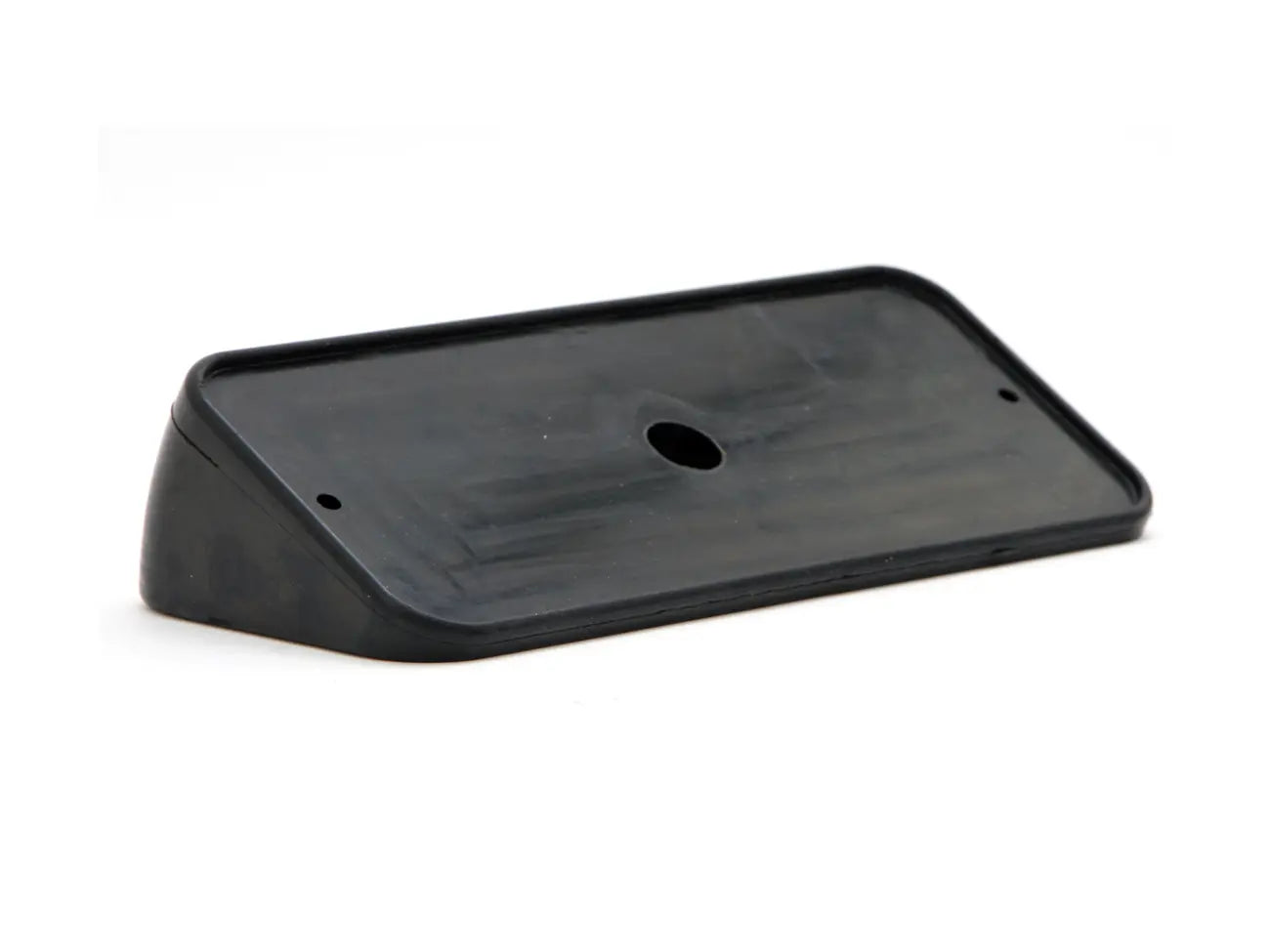

- Optional rubber mount increases the downward beam angle to 45 degrees - ideal for high mounting positions or where there is a need to focus light near the vehicle
- Sealed to IP65 and designed to withstand vibration from heavy duty commercial use
- Lens and bezel made from strong UV stabilised polycarbonate
- Robust cast bezel with ample heat dissipation for long LED life
Datasheets - Haztec 4-10412 12 LED Scene Light
SPECIFICATIONS
- Approvals: R10, IP65
- Dimensions (mm): 182W x 38D x 77H
- Nominal Voltage: 12/24V
- Operating Voltage: 10-40VDC
- Light Output: 800 Lumens
- Warranty: 5 Years
TESTED & CERTIFIED
For your peace of mind, we submit our products to rigorous testing and independent certification to all
relevant international standards.
