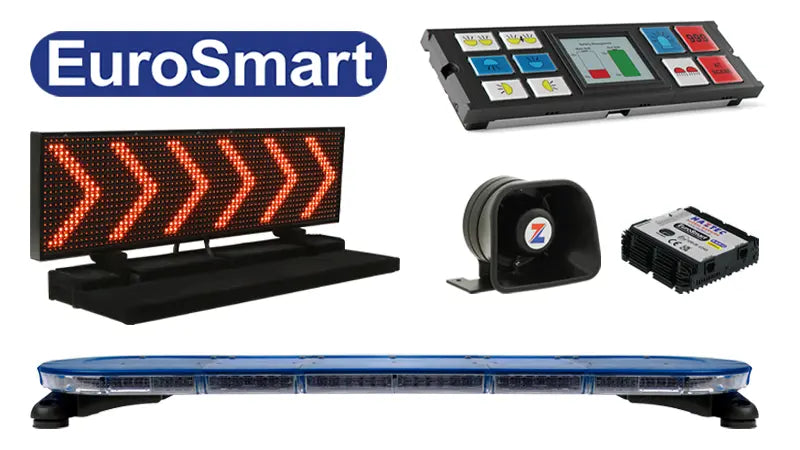

EUROSMART FROM HAZTEC

LIGHTS, SIREN & INFOSIGNS CONTROL IN ONE

EuroSmart is Haztec's smart integrated programming and control system, designed to operate the full range of visual and audible vehicle warning equipment - from activating siren tones, LED lightbar functions and InfoSigns messages to controlling ancillary equipment such as grille, external scene and search lights.

EuroSmart reduces dashboard clutter and simplifies even the most complex switching applications, allowing you to focus on staying safe on the road.

Here are just a few of the benefits you can expect:

  • Single push button activation of sequences such as ‘full response’ - for example, lightbar flash patterns, siren, grille lights and headlights
  • ‘Plug and play’ for rapid, problem-free set-up
  • Fully programmable including LED flash patterns, cruise, high/low power and front/rear or left/right synchronisation and siren control
  • Reprogram at any time using Haztec EuroSmart software
  • No need to switch heavy power - latest generation Haztec LED lightbars and EuroSmart sirens can be directly controlled by sending software commands from the controller
  • Manage external devices such as LED grille lights, headlight flashers, run-lock modules etc by integrating Haztec EuroSmart control modules
  • Wirelessly broadcast voice and audio messages via a mobile app using the 8-82019-BT Bluetooth® junction box - useful for many different applications such as playing back multiple recorded messages or bird scaring alerts at airports

Example Configurations

EuroSmart software, together with our many different control modules, sirens and handsets, can be as simple or sophisticated as you need.

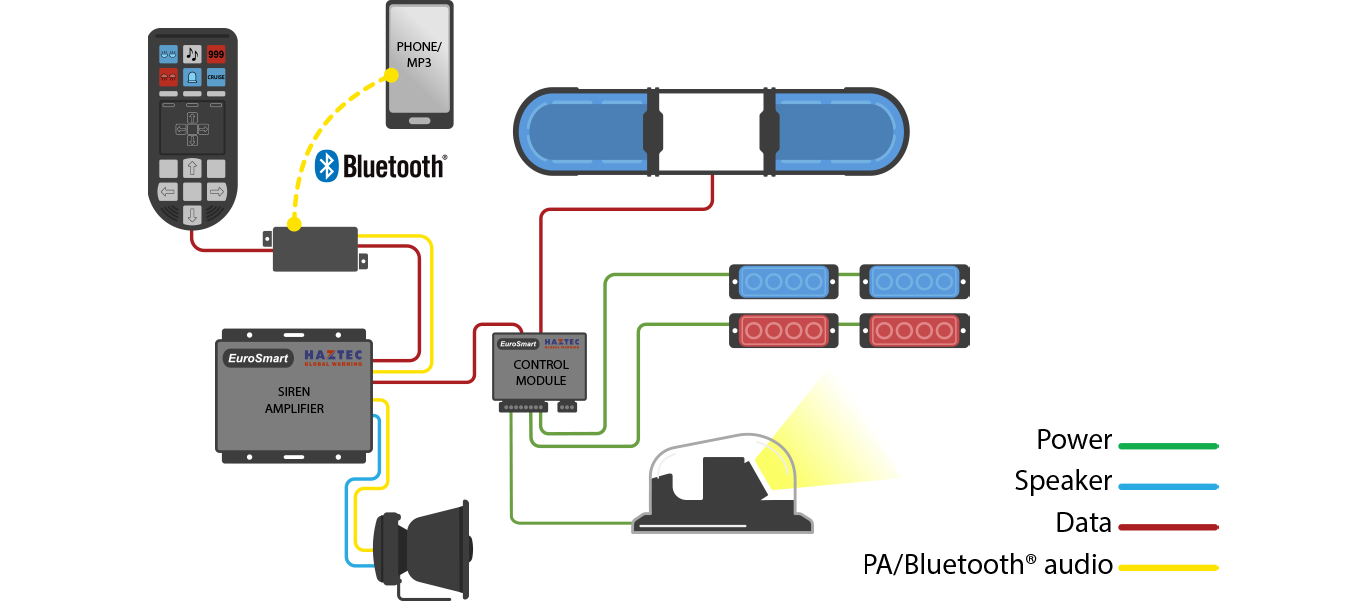

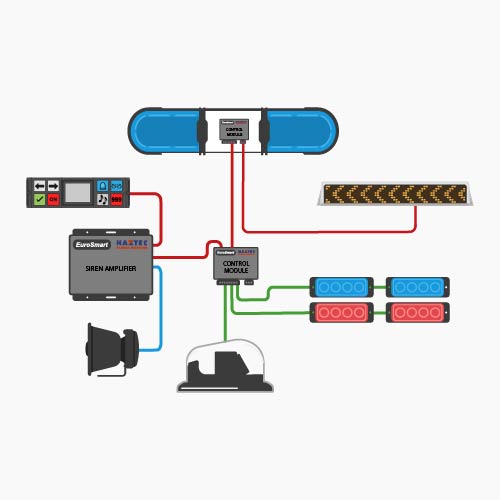

8-82316+ 27 FUNCTION CONTROLLER AND 8-82019-BT BLUETOOTH® JUNCTION BOX

With our latest 8-82316+ 27 function* handset you can even control external devices such as motorised searchlights - no need for separate controllers with different operating menus creating unnecessary cockpit clutter.  The optional 8-82019-BT CANbus junction box with Bluetooth® allows you to broadcast voice and audio messages via a mobile app.

* On all Haztec handsets, a function can be a simple command or a sequence of commands.

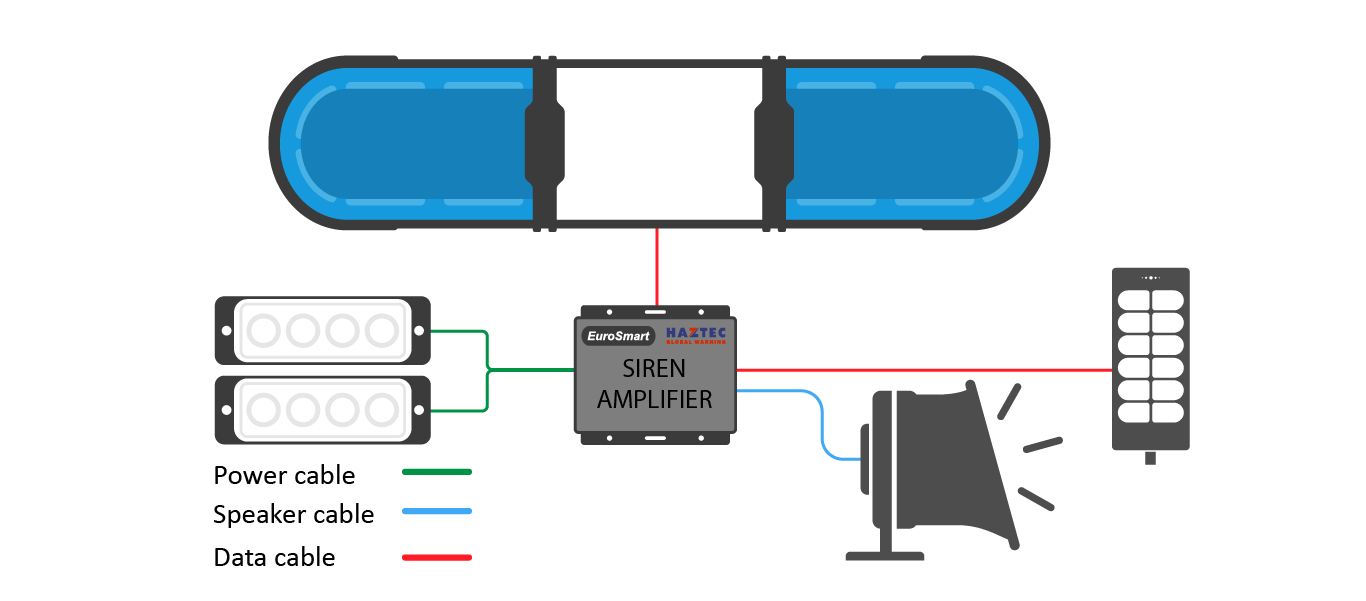

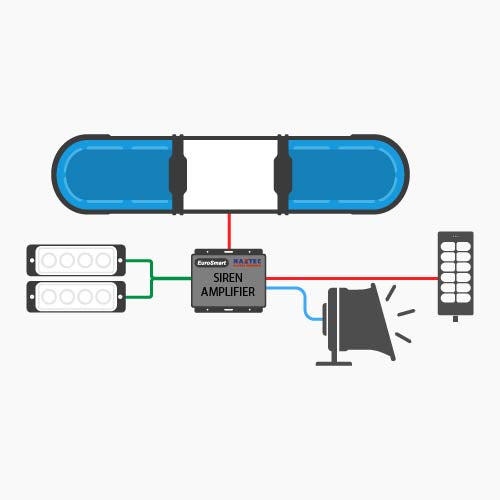

SIREN WITH BUILT-IN SWITCHED OUTPUTS

  • Control siren tones, grille lights, headlights etc
  • Lightbar, siren and auxiliary lights all controlled by handset
  • Integral noise-cancelling microphone/PA
  • Speaker
  • Optional additional remote mounted switching module to control ancillary lighting

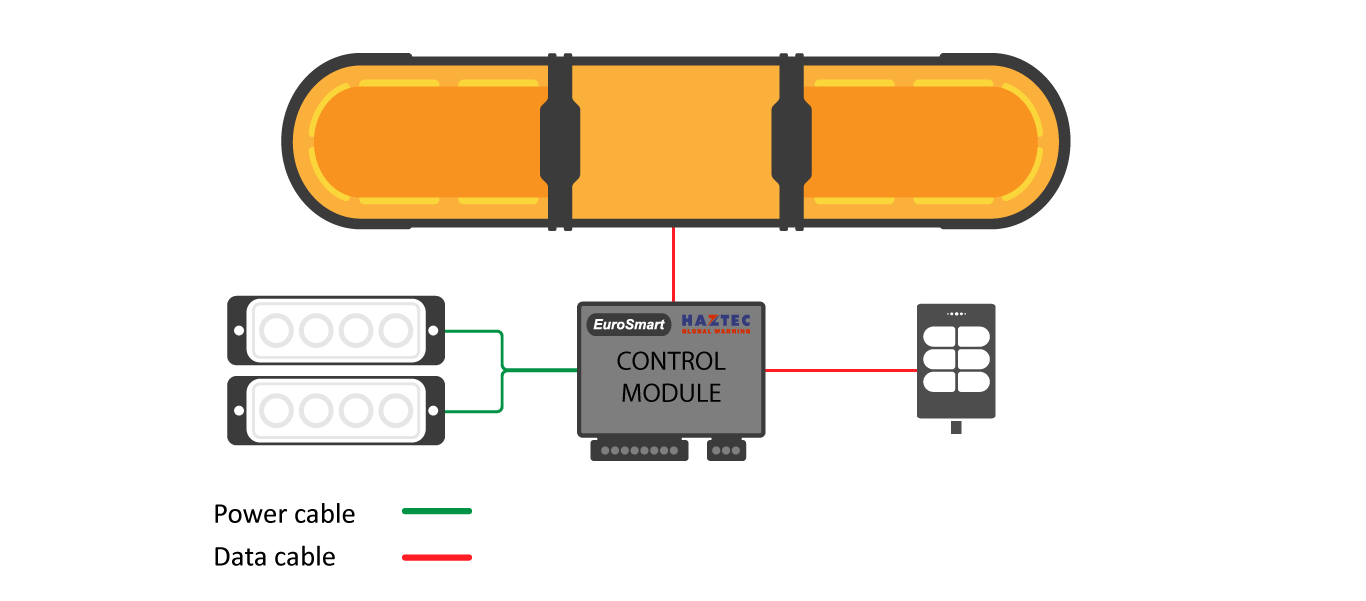

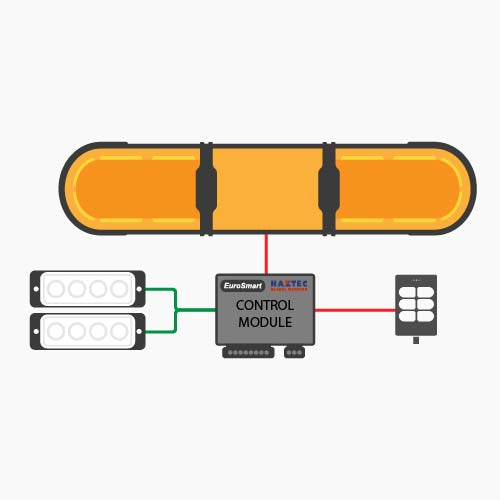

HANDSET WITH CONTROL MODULE

  • Control of lightbar functions
  • Optional remote mounted switching module provides up to 8 switched outputs, all controlled by the dash mount or handheld controller
  • Link up to 3 switching modules, giving a total of 24 separately controlled outputs (up to 4 modules giving 32 outputs and 16 programmable inputs with the 8-82316+ handset)

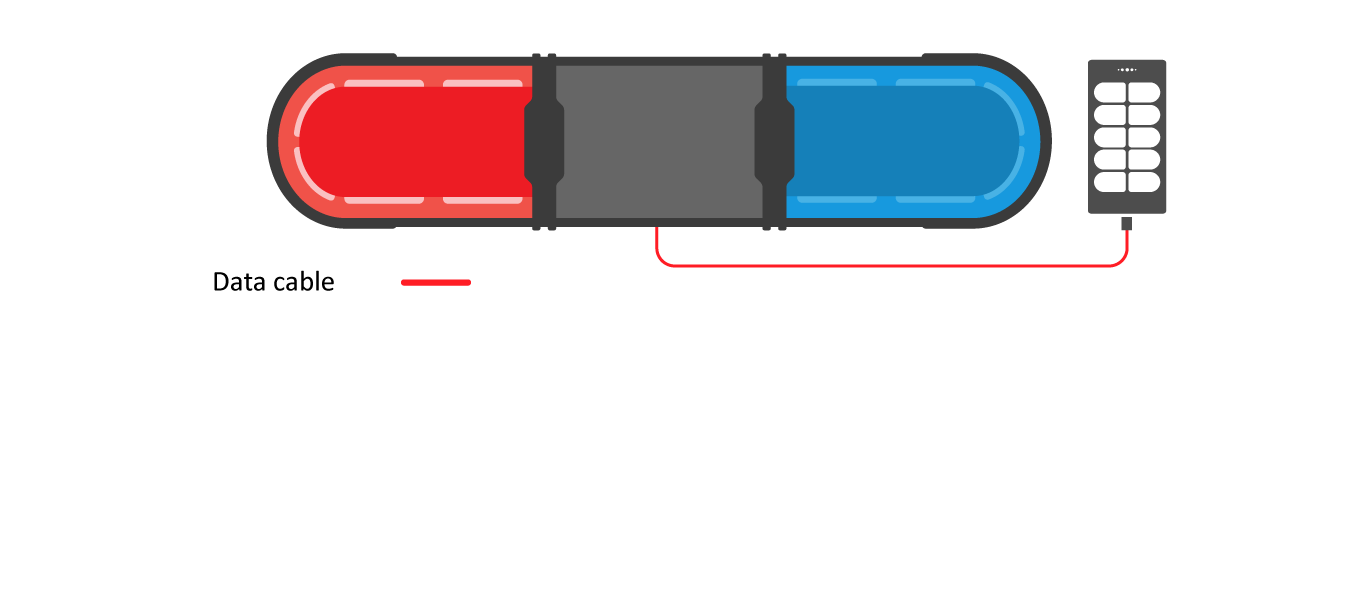

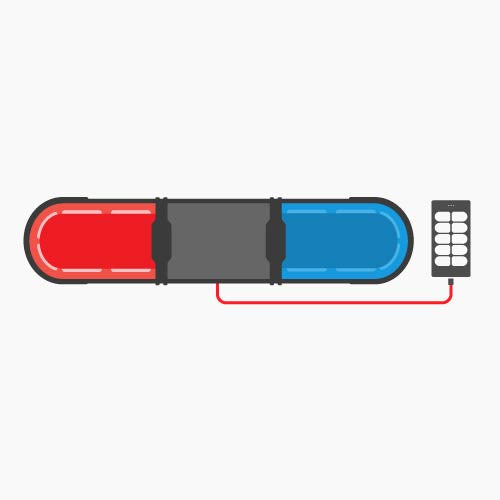

HANDSET CONTROL

Handset controls all lightbar functions via a single direct cable connection
